Click to enlargeConflat Flange TEES

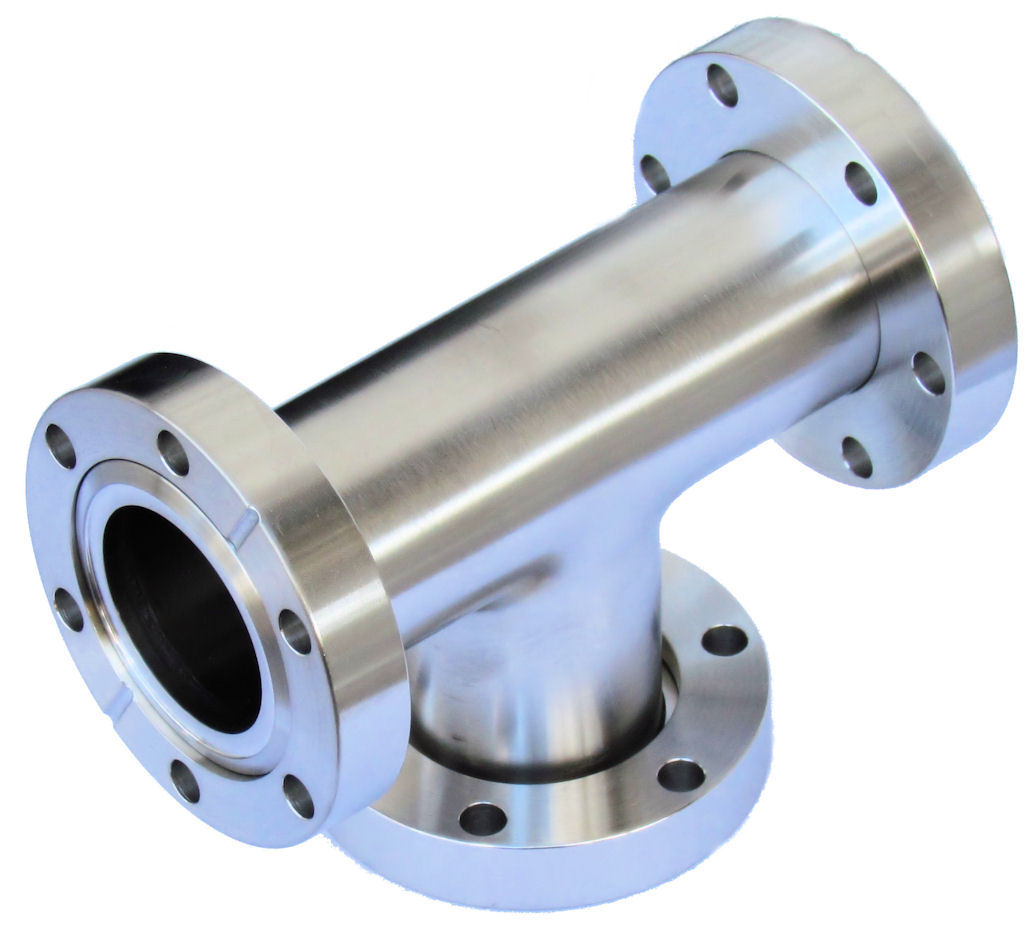

CF Conflat Flange Tees
CFF 3 Way Standard Tee

• 304 Stainless Steel
• UHV Vacuum Rating: 10-13 torr (approx)
• Temperature Range: -200°C to 450°C

Conflat Flange (CF) High and UHV Vacuum Fittings

1.33" OD Conflat

0.75" Tube OD

(6 Bolt Holes)

2.12" OD Conflat

1.00" Tube OD

(4 Bolt Holes)

2.75" OD Conflat

1.50" Tube OD

(6 Bolt Holes)

3.38" OD Conflat

2.00" Tube OD

(8 Bolt Holes)

4.50" OD Conflat

2.50" Tube OD

(8 Bolt Holes)

4.62" OD Conflat

3.00" Tube OD

(10 Bolt Holes)

6.00" OD Conflat

4.00" Tube OD

(16 Bolt Holes)

6.75" OD Conflat

5.00" Tube OD

(18 Bolt Holes)

8.00" OD Conflat

6.00" Tube OD

(20 Bolt Holes)

10" OD Conflat

8.00" Tube OD

(24 Bolt Holes)

3-Way Equal Tee Fitting
High and Ultra High Vacuum (UHV) Flange




Tee, 1.33" OD Conflat
133-075-CFT


Price: $148.34
Sale: $69.00
Tee, 1.33" OD Conflat
133-CFT-VE


Vacuum Essential
$98.00
Tee, 2.12" OD Conflat
212-100-CFT


Price: $183.15
Sale: $99.00
Tee, 2.12" OD Conflat
212-CFT-VE


Vacuum Essential
$127.00
Tee, 2.75" OD Conflat
275-150-CFT


Price: $260.00
Sale: $124.00
Tee, 2.75" OD Conflat
275-CFT-VE


Vacuum Essential
$161.00
Tee, 2.75" OD Conflat (Long)
275-150-CFT-L


Price: $260.00
Sale: $148.00
Tee, 2.75" OD Conflat (Long)
275-CFT-L-VE


Vacuum Essential
$185.00
Tee, 3.38" OD Conflat
338-200-CFT


Price: $453.50
Sale: $234.00
Tee, 3.38" OD Conflat
338-CFT-VE


Vacuum Essential
$291.00
Tee, 4.50" OD Conflat
450-250-CFT


Price: $376.00
Sale: $298.00
Tee, 4.50" OD Conflat
450-CFT-VE


Vacuum Essential
$404.00
Tee, 4.50" OD Conflat (Long)
450-250-CFT-L


Price: $620.00
Sale: $321.00
Tee, 4.50" OD Conflat (Long)
450-CFT-L-VE


Vacuum Essential
$426.00
Tee, 4.62" OD Conflat
462-300-CFT


Price: $602.00
Sale: $338.00
Tee, 4.62" OD Conflat
462-CFT-VE


Vacuum Essential
$408.00
Tee, 6.00" OD Conflat
600-400-CFT


Price: $685.00
Sale: $549.00
Tee, 6.00" OD Conflat
600-CFT-VE


Vacuum Essential
$649.00
Tee, 6.00" OD Conflat (Long)
600-400-CFT-L


Price: $787.35
Sale: $598.00
Tee, 6.00" OD Conflat (Long)
600-CFT-L-VE


Vacuum Essential
$699.00
Tee, 6.75" OD Conflat
675-500-CFT


Price: $1,133.50
Sale: $760.00
Tee, 6.75" OD Conflat
675-CFT-VE


Vacuum Essential
$864.00
Tee, 8.00" OD Conflat
800-600-CFT


Price: $2,559.38
Sale: $869.00
Tee, 8.00" OD Conflat
800-CFT-VE


Vacuum Essential
$1,009.00
Tee, 10.00" OD Conflat
1000-800-CFT


Price: $2,670.50
Sale: $1,726.00
Tee, 10.00" OD Conflat
1000-CFT-VE


Vacuum Essential
$1,935.00

**Vacuum Essentials Include**
• Conflat Flange CF Tee
• 3-Bolt Kits (BK Series)
• 10-Copper Gaskets (CG Series)
