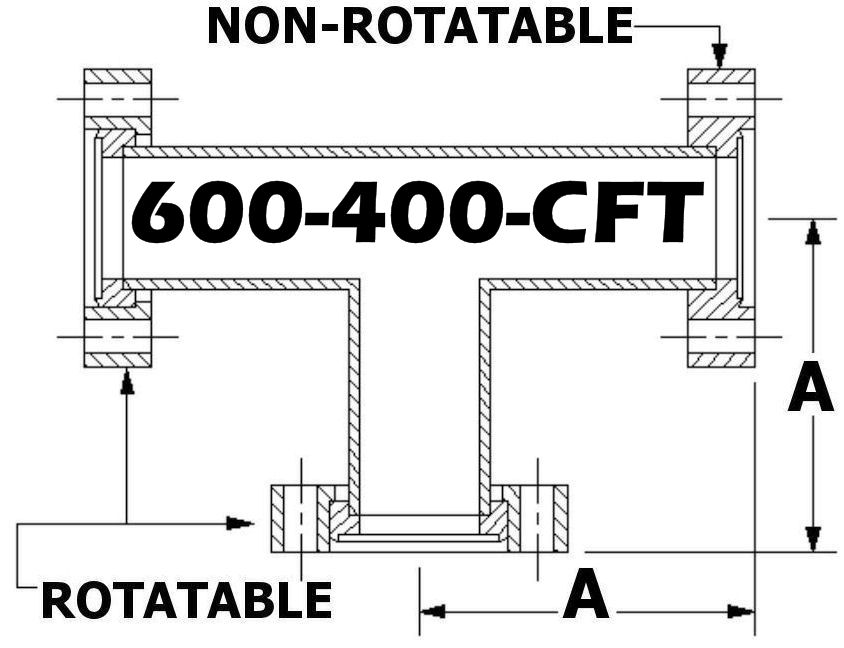

Click to enlarge6.00" OD Conflat TEE
A: 4.32"

600-400-CFT
6.00" OD Conflat Flange TEE

• 304 Stainless Steel
• UHV Vacuum Rating: 10-13 torr (approx)
• Temperature Range: -200°C to 450°C
• OD Polish

6.00" OD Conflat Flange (CF):
• 4.00" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF
600-400-CFT Compare to: T-0600S 3T-400 5000494 400-3 404040 600-CFT-VE 600-400-T 600-400-CFT-VE 600-CFT-VE 9088K64


Tee, 6.00" OD Conflat
600-400-CFT

600-400-CFTPrice: $685.00Sale: $549.00

Click to enlarge
Click to enlarge
6.00" OD Conflat Series Hardware


Standard Conflat Tees (All)


Click to enlarge
Click to enlarge
Reducing Tees (All)


Non-Reducing Tees



**6.00" OD Conflat Flange Accessories Below**
6.00" OD Conflat Flange - Bolt Kits
6.00" OD Conflat Flange - Copper Gaskets
6.00" OD Conflat Flange - Viton Gaskets
6.00" OD Conflat Flange – Plastic Caps
