Tee, 1.33" OD Conflat <br> 133-CFT-VE

133-CFT-VE

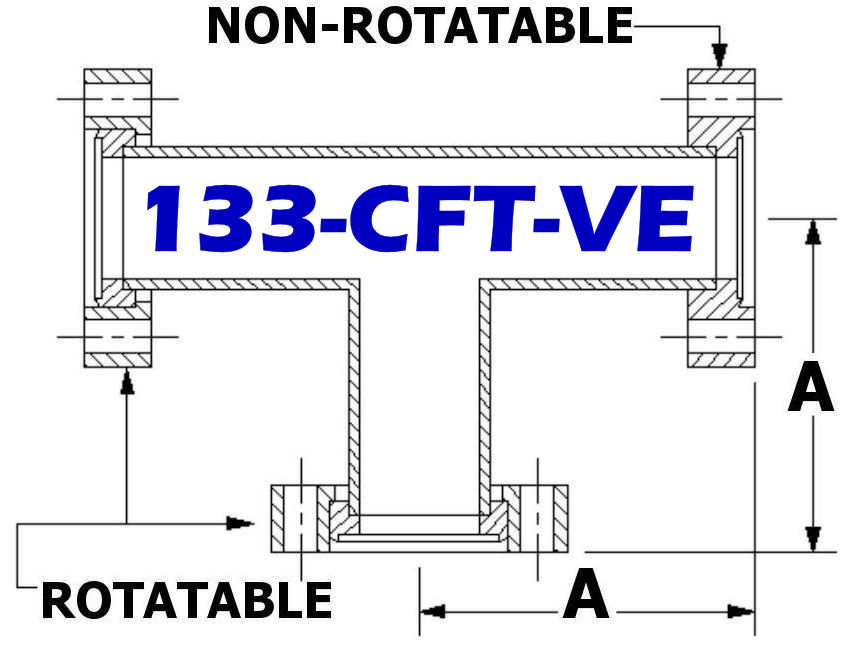

1.33" OD Conflat Flange TEE
Vacuum Essential
• 304 Stainless Steel
• UHV Vacuum Rating: 1×10-13 torr (approx)
• Temperature Range: -200°C to 450°C
• OD Polish

1.33" OD CF Conflat Flange
• 0.75" Tube OD
• 6 Clearance (Thru) Holes
• 0.172" Bolt Hole Diameter

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF
133-075-CFT-VE 133-075-T-VE 133-T-VE



1.33" OD Conflat Series Hardware		Standard Conflat Tees (All)



Reducing Tees (All)		Non-Reducing Tees

*This Vacuum Essential Includes*
• TEE, 1.33" OD Conflat: 133-075-T
• 3-Bolt Kits (133-BK Series)
• 10-Copper Gaskets (133-CG Series)
