Tee, 4.62" OD Conflat <br> 462-CFT-VE

462-CFT-VE

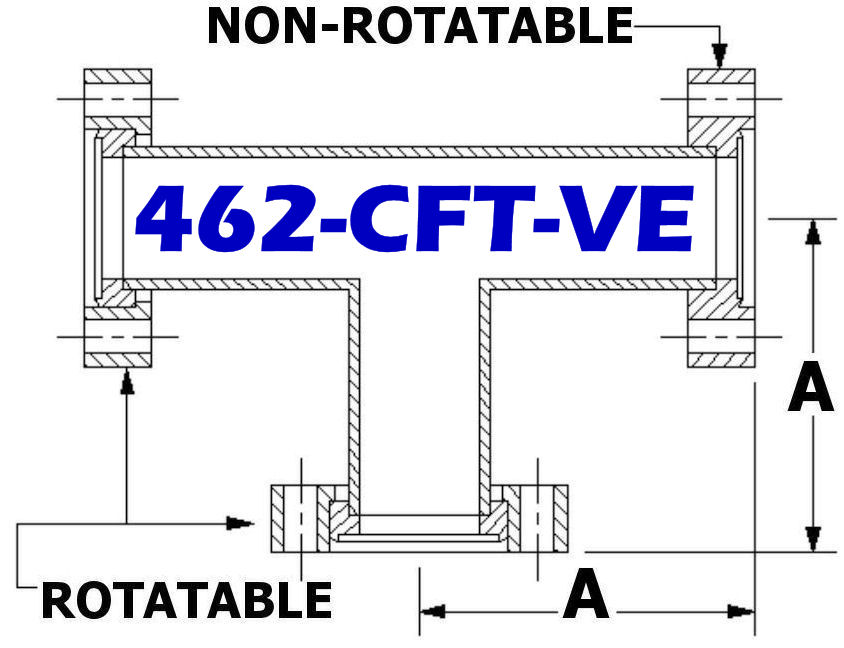

4.62" OD Conflat Flange TEE
Vacuum Essential
• 304 Stainless Steel
• UHV Vacuum Rating: 10^-13 torr (approx)
• Temperature Range: -200°C to 450°C
• OD Polish

4-5/8" OD Conflat Flange (CF):
• 3.00" Tube OD
• 10-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.625" OD Conflat Flange (CFF) Equivalents:
• CF462, DN75CF, NW75CF, 462CF
462-300-CFT 462-300-CFT-VE 462-T-VE 462-300-T-VE



4.62" OD Conflat Series Hardware		Standard Conflat Tees (All)



Reducing Tees (All)		Non-Reducing Tees

**This Vacuum Essential Includes**
• TEE, 4.62" OD Conflat: 462-300-CFT
3-Bolt Kits (462-BK Series)
• 10-Copper Gaskets (462-CG Series)
