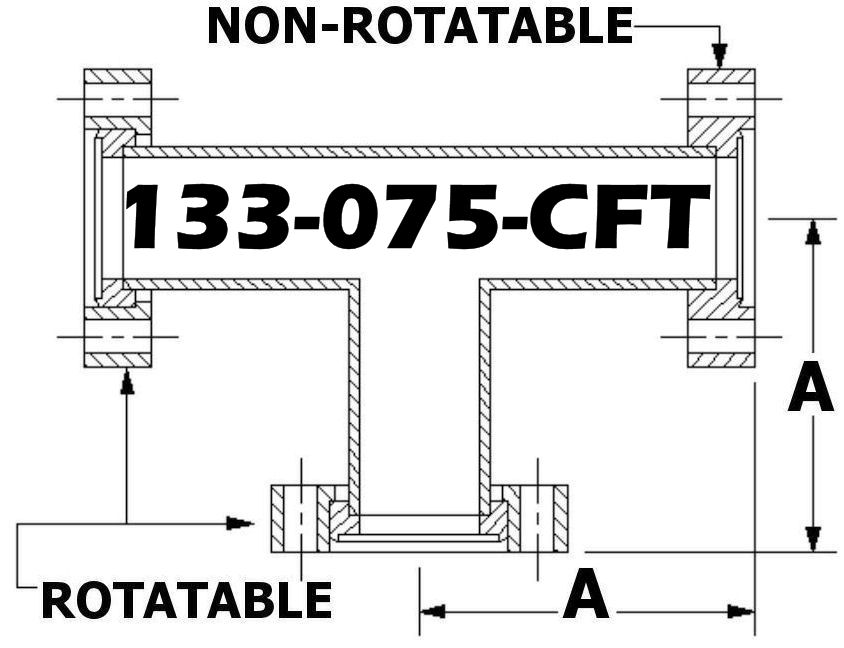

Click to enlarge1.33" OD Conflat Tee
A: 1.50"

133-075-CFT
1.33" OD Conflat Flange TEE

• 304 Stainless Steel
• UHV Vacuum Rating: 1x10-13 torr (approx)
• Temperature Range: -200°C to 450°C
• OD Polish

1.33" OD CF Conflat Flange
• 0.75" Tube OD
• 6 Clearance (Thru) Holes
• 0.172" Bolt Hole Diameter

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF
133-075-CFT Compare to: FT0075 100881028 T-0133 3T-075 5000486 P102192 404000 075-3 133-075-T 133-CFT-VE 9088K61


Tee, 1.33" OD Conflat
133-075-CFT

133-075-CFTPrice: $148.34Sale: $69.00

Click to enlarge
Click to enlarge
1.33" OD Conflat Series Hardware


Standard Conflat Tees (All)


Click to enlarge
Click to enlarge
Reducing Tees (All)


Non-Reducing Tees
