NW16 Brass Braze Socket Weld Flange <br> (NW16-050-BF)

NW16-050-BF
NW16 (KF16) to 0.50" Tube Size
Braze Socket Weld Flange, Brass

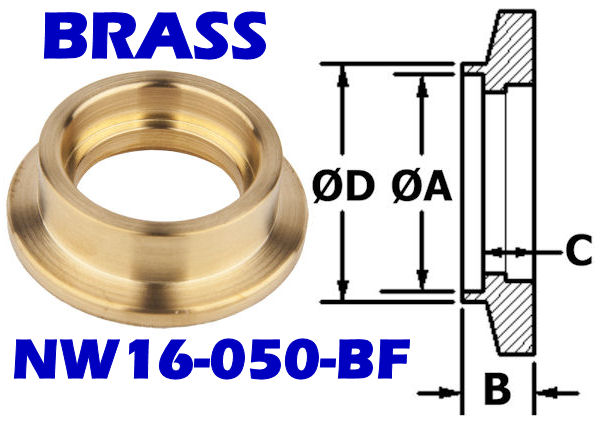

• A: 0.51"
• B: 0.50"
• C: 0.25" (offset)
• D: 0.63"
• Accepts traditional copper tubing

Tube Size: 1/2"

NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

Unfortunately, pricing for brass items have doubled from our supplier. We apologize for the price increases.

No Cancel, No Return Item
NW16-050-BF Compare to: QF16-050-BF 100315301



NW Weld/Braze Fittings (ALL)		BF Series (ALL)

***NW16 Flange Accessories Available Below***
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps
