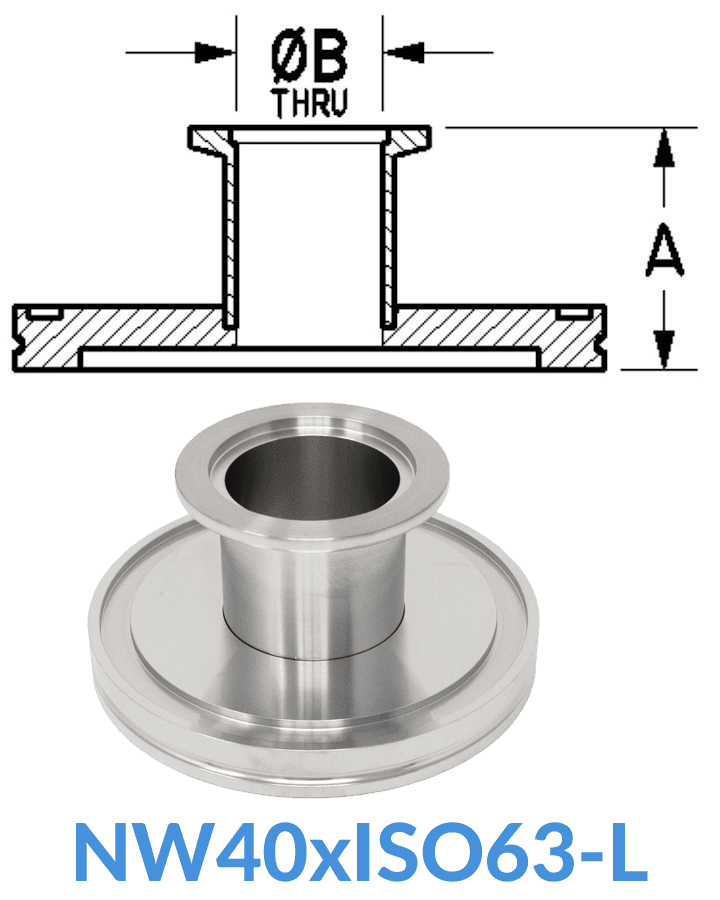

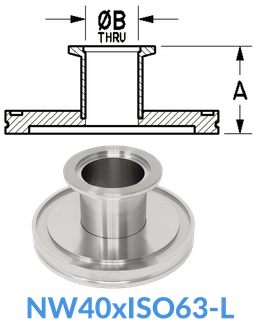

Straight Reducer <br> (NW40xISO63-L)

NW40 To ISO63 Straight Reducer
304 Stainless Steel
A: 1.82" (Long)
B: 1.37"
Tube OD: 1.50"

NW40xISO63-L
NW40xISO63 Straight Reducer (Long)
• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO63xNW40)
• High Vacuum Fitting
• OD Polish

NW40 to ISO63 Straight Reducing Nipple Adapter

ISO63 (ISO-K) Series
• High Vacuum Flange OD: Ø3.74"
• ISO-K Claw Clamp Style

ISO63 High Vacuum Flange Equivalents:
ISO-63, LF63, NW63, NW-63, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40xISO63-L Compare to: QF63XQF40 100762606 QF40XLF63 4500253 LF63XQF40-150-N-1.83 P103767 84000 L250XK150 KF40xISO63 ISO63xKF40 NW40xISO63-L-VE ISO63xNW40-L-VE



ISO63 Series Hardware		All NW40 Hardware



NW40 to ISO Straight Reducers		NW Series to ISO Conical Reducers

**NW40 Flange Accessories Available Below**
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps

**ISO63 Flange Accessories Available Below**
ISO Series Claw Clamps
ISO63 Centering Rings
ISO63 Plastic Caps
