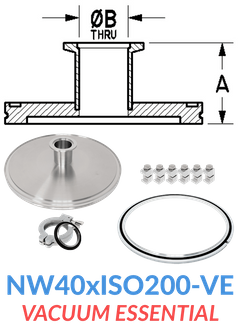

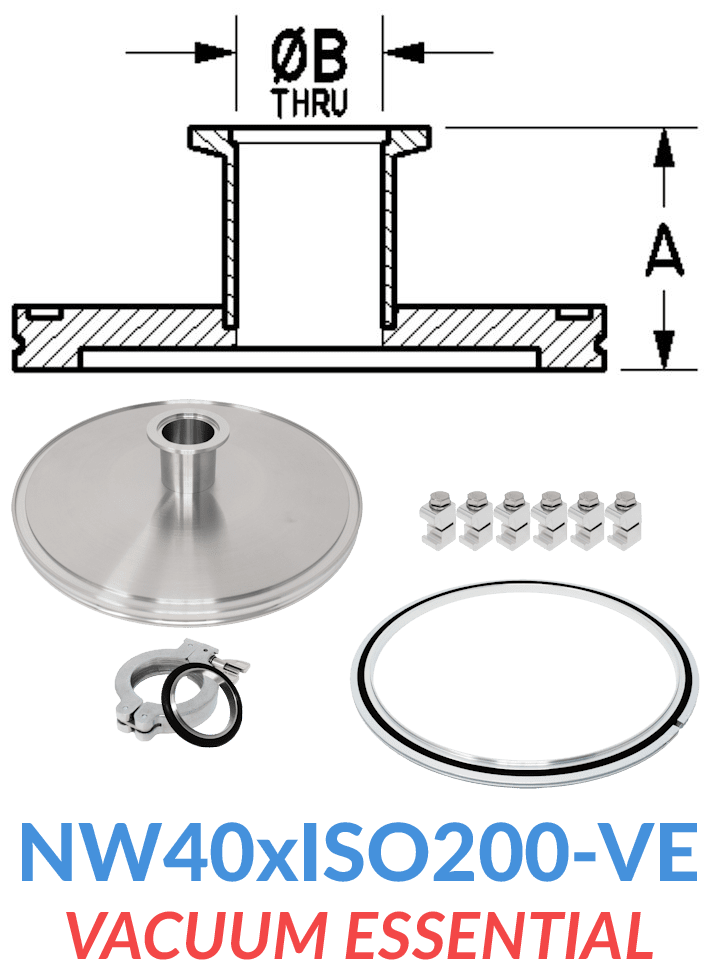

Straight Reducer <br> (NW40xISO200-VE)

NW40xISO200-VE
NW40xISO200 Straight Reducer
• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO200xNW40)
• High Vacuum Fitting
• OD Polish
Vacuum Essential

NW40 to ISO200 Straight Reducing Nipple Adapter

ISO200 (ISO-K) Series
• High Vacuum Flange OD: Ø9.45"
• ISO-K Claw Clamp Style

ISO200 High Vacuum Flange Equivalents:
ISO-200, LF200, NW200, NW-200, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF



ISO200 Series Hardware		All NW40 Hardware



NW40 to ISO Straight Reducers		NW Series to ISO Conical Reducers

***This Vacuum Essential Includes***
NW40 to ISO200 Straight Reducer: NW40xISO200

ISO200 Series
6 Aluminum Double Claw Clamps ISO160-250-DC
1 SS/Viton Centering Ring ISO200-800-SR-V

NW40 Series
1 Aluminum Wing Clamp NW40-150-CW
1 Stainless/Viton Centering Ring NW40-150-SR-V
