NW50 Short Weld Flange Aluminum <br> NW50-200-AS

NW50-200-AS

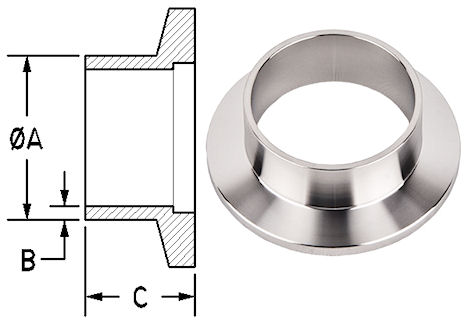

2" Tube Size
• A: 2.00"
• B: 0.065"
• C: 0.75"

NW50 Short Weld Stub High Vacuum Flange
NW50 (KF50) Butt Weld Flange
• 6061 T6 Aluminum
• Accepts Standard Inch Tubing

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Tube OD: 2"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50-200-AS Compare to: QF50-200-AS 100310106 4000132 QF50-200-HNM-0.75-AL P104606



Stainless Short Weld Stub Flanges		Aluminum Short Weld Stub Flanges



NW Weld/Braze Fittings (ALL)		LF Series Flanges



Crosses, Weldable Bodies		Tees, Weldable Bodies



Elbows, Weldable Bodies		Conical Reducers, Weldable Bodies



All NW50 Hardware

NW50 Flange OD: Ø2.95"
NW50 Tube OD: 2.00"

***NW50 Flange Accessories Available Below***
NW50 Centering Rings
NW50 Clamps, All Types
NW50 Plastic Caps
