Click to enlargeNW50 Centering Ring Without O-Ring
Stainless

NW50-200-SR
NW50 Centering Ring
NO O-Ring
304 Stainless
NW50 (KF50) High Vacuum Hardware

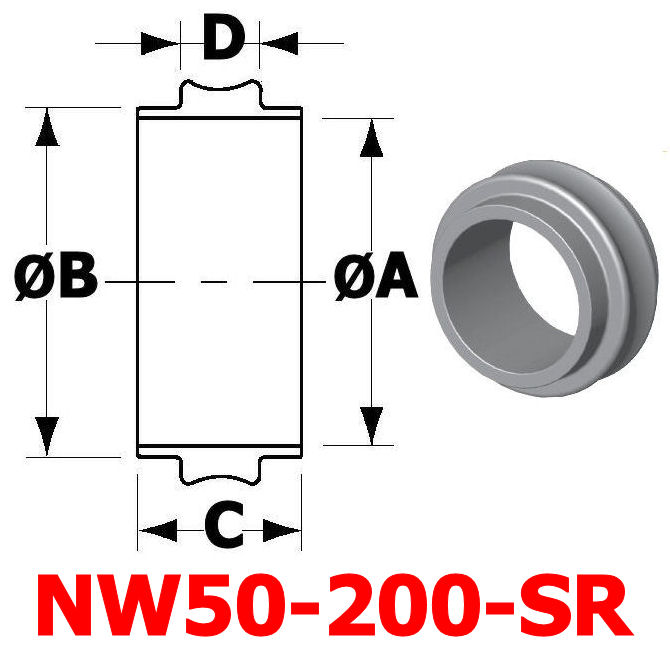

• A: 1.97"
• B: 2.05"
• C: 0.32"
• D: 0.15"

Fits NW50 Flange Series Equivalents:
KF50, KF-50, NW-50 & QF50


NW50 Centering Ring Without O-Ring
(NW50-200-SR)

NW50-200-SR$6.00
