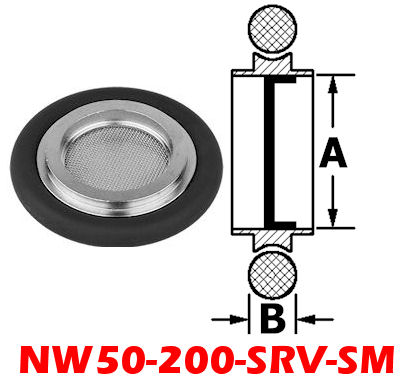

Click to enlargeNW50 Mesh Screen Centering Ring A: 1.88" B: 0.21"

NW50-200-SRV-SM
NW50 (KF50) Stainless Mesh Screen Centering Ring With Viton (FKM) O'Ring
• NW50 (KF50, QF50) Series High Vacuum Hardware
• Centering Ring with Screen (304 Stainless)
• 72 Mesh Screen Centering Ring With ORing

NW50 (KF50, QF50) O'Ring
• Viton (Fluorocarbon, FKM): 200°C Maximum

NW50 Series Equivalent Names:
• KF50, KF-50, NW-50, QF50, Kwik Flange
NW50-200-SRV-SM Compare to: QF50-SRV-SM KC50SV72M 100318606 P102539 NW-50-CR-SV-74 4518K818 4000053 QF50-200-SRV-SM NW50-200-SR-V-SM


NW50 Mesh Screen Ring Viton O-Ring
(NW50-200-SRV-SM)
NW50-200-SRV-SMPrice: $48.39Sale: $35.00

Click to enlarge
Click to enlarge
NW50 O-Rings (All)


NW50 Series Clamps


Click to enlarge
Click to enlarge
All NW50 Hardware


NW50 Mesh Screened Centering Rings
