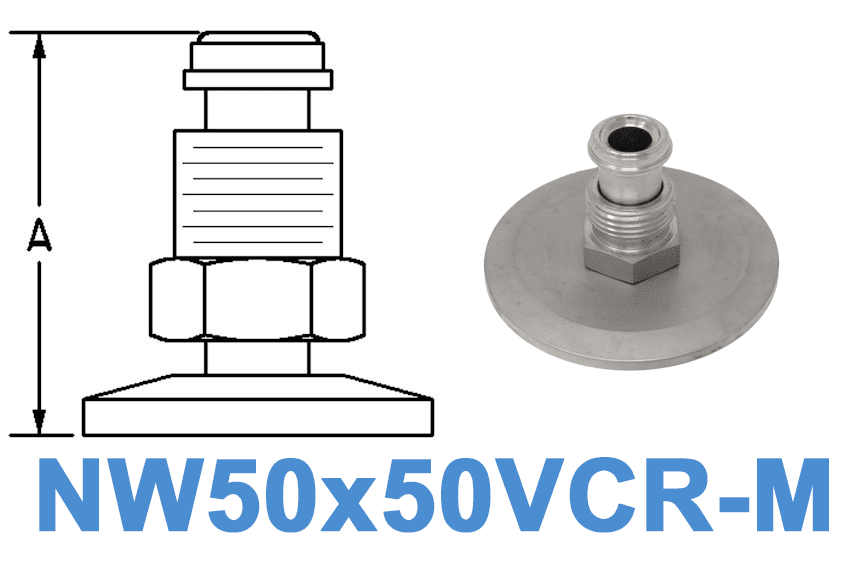

Click to enlargeNW50 to 1/2" VCR, Male 1.55" Overall Length

NW50x50VCR-M
NW50 (KF50, QF50) Flange OD: Ø2.95"
• NW50 to 1/2" (0.50") Male VCR Adapter
• NW50 to Male 8 VCR (VCR8)
• 304 Stainless
• Images Shown For Reference Only

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50x50VCRM QF50X8MVCR QF50X50VCR-M 414061 K200-VCR50 100319126 P101383 4000311 QF50XMVCR50-1.55


NW50 to 1/2" VCR, Male
(NW50x50VCR-M)
NW50x50VCR-MPrice: $126.66Sale: $88.00

Click to enlarge
Click to enlarge
All NW50 Hardware


VCR Copper Gaskets


Click to enlarge
Click to enlarge
NW VCR, Male (All)


NW VCR, Female (All)



VCR Reference Guide

1/8" = VCR2



1/2" = VCR8

1/4" = VCR4

3/4" = VCR12

3/8" = VCR6

1" = VCR16

**NW50 Flange Accessories Available Below**
NW50 Centering Rings
NW50 Clamps, All Types
NW50 Plastic Caps

**VCR Copper Gaskets Available Below**
VCR Copper Gaskets, All Sizes
