NW40 Industrial Valve With 24VDC Solenoid <br> (XLAV-40-M9-5L)

NW40 Pneumatic Industrial Valve
Air Operated, Normally Closed
Aluminum Body
24 VDC Solenoid With Light & Surge Suppressor

XLAV-40-M9-5L
NW40 (KF40) Pneumatic Industrial Right Angle Vacuum Valve (Aluminum) With 24 VDC Solenoid
Normally Closed, Pressurize to Open

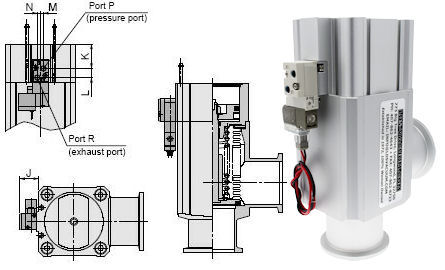

• J: 0.69"
• K: 0.91"
• L: 0.33"
• M: 0.12"
• N: 0.12"

• High Vacuum Industrial Valve
• Spring Seal
• Magnetic Piston
• Service Life: 2 Million Cycles
• Aluminum Body

XLAV Series Includes:
• 24 VDC Solenoid
• Light and Surge Suppressor

Operating Temperature:
• 5 to 50°C

Operating Pressure:
• 760 to 7.5x10-9 Torr

*Leakage:
• Internal: 10-9 Torr l/s
• External: 10-10 Torr l/s
*At ordinary temperatures, excluding gas permeation

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
XLAV-NW40-M9-5L XLAV-40L-M9//-5LZ XLAV-40G-M9//-5L SMC XLAV-40L-2M9//-5LZ
