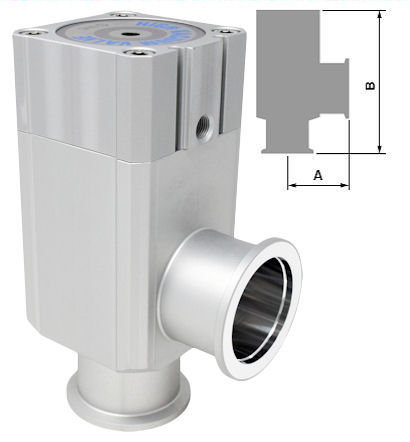

NW25 Industrial Valve Without Solenoid <br> (XLA-25-M9)

NW25 Pneumatic Industrial Valve
Air Operated, Normally Closed
Aluminum Body
A: 1.97"
B: 4.45"

XLA-25-M9
NW25 (KF25) Pneumatic Industrial Right Angle Vacuum Valve (Aluminum) Without Solenoid
Normally Closed, Pressurize to Open
• High Vacuum Industrial Valve
• Spring Seal
• Magnetic Piston
• Service Life: 2 Million Cycles
• Aluminum Body

Operating Temperature:
• 5 to 60°C

Operating Pressure:
• 760 to 7.5x10-9 Torr

*Leakage:
• Internal: 10-9 Torr l/s
• External: 10-10 Torr l/s
*At ordinary temperatures, excluding gas permeation

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Tube OD: 1.00"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF
XLA-NW25-M9 XLA-25A-2M9// XLA-25-M9// SMC
