90° Reducing Elbow <br> (NW50x40-E90)

NW50x40-E90

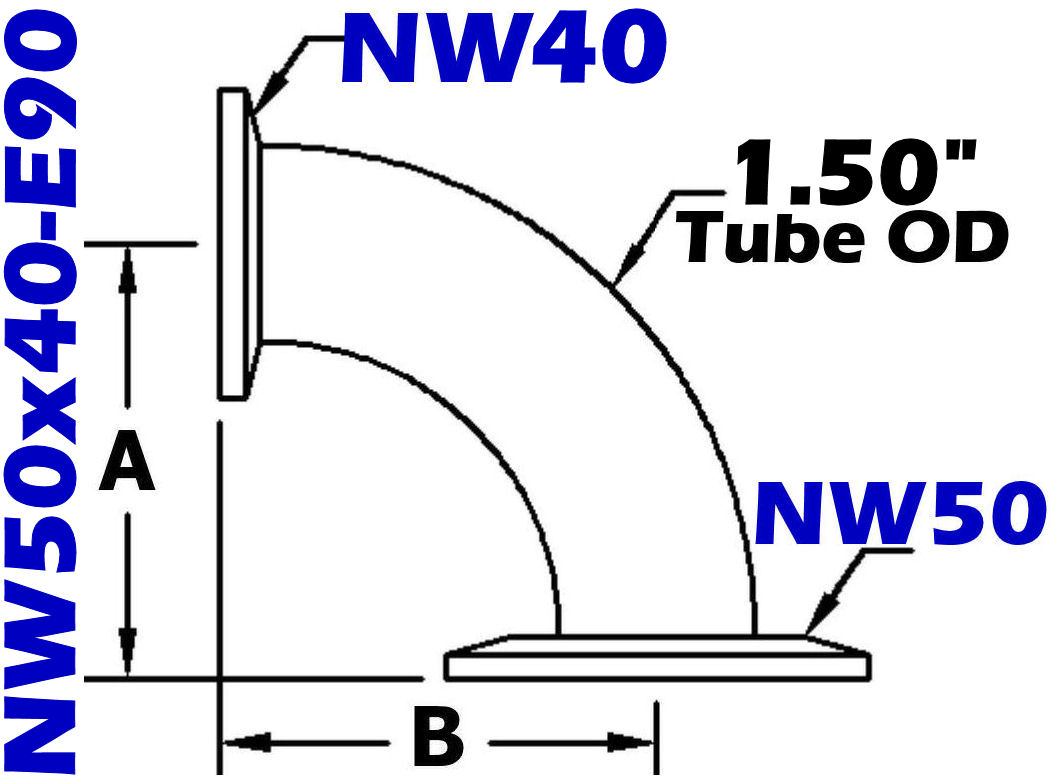

NW50 to NW40 Reducing Radius Elbow
• KF50 to KF40 (KF50xKF40)
• NW50xNW40 (NW40xNW50)
• A: 2.40"
• B: 2.42"
• 1 lb.
• 304 Stainless
• OD Polish

90 Degree Reducer Elbow (High Vacuum Fitting)

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50xNW40-E90 NW40xNW50-E90 KF50x40-E90 KF50xKF40-E90 KF40xKF50-E90 KF-50 to KF-40 ISO-KF Flange Size P108307 NW-50 to NW-40, SS NW50x40-E90-VE
