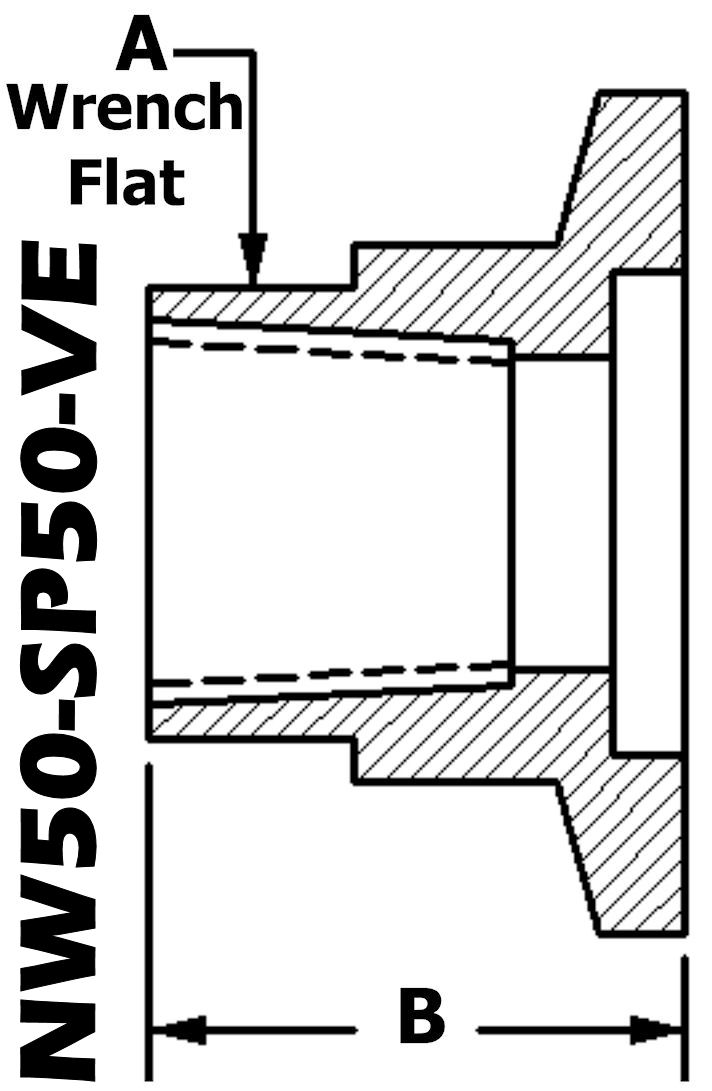

Click to enlargeNW50 to 1/2" Female NPT A: 1.75" B: 1.00"

NW50-SP50-VE
NW50 to 1/2" Female NPT Adapter
Vacuum Essential
• NW50 (KF50) Flange OD: Ø2.95"
• Use With Teflon Tape
• 304 Stainless

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50-200-SP50-VE


NW50 To 1/2" NPT (Female)
NW50-SP50-VE
NW50-SP50-VE$48.00

Click to enlarge
Click to enlarge
NW Female NPT


All NW50 Hardware


Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/4" NPT & Larger


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
NW50 Male NPT (Stainless)


NW50 Male NPT (Aluminum)



***This Vacuum Essential Includes***
• NW50 to 1/2" Female NPT
1-Aluminum Wing Clamp (NW50-200-CW)
1-Stainless/Viton Centering Ring (NW50-200-SR-V)
