NW16 to 6.00" Conflat <br> Straight Reducer <br> (NW16x600-VE)

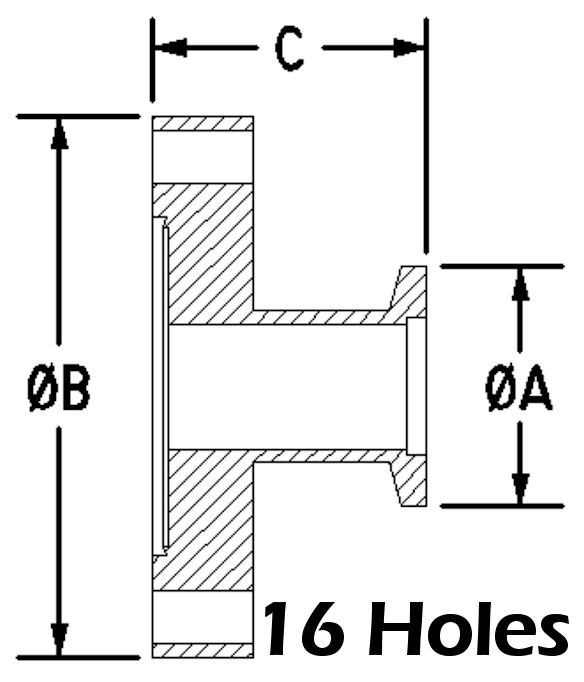

NW16 to 6.00" OD CF
Tube OD: 0.75"
A: 1.18"
B: 6.00"
C: 2.02"
*Vacuum Essential*

NW16x600-VE
NW16 (KF16) to 6.00" OD Conflat Flange (CF)
Vacuum Essential
NW16xDN100CF, KF16xDN100CF, DN100CFxNW16
• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• High Vacuum Adapter (600xNW16)

NW16 High Vacuum Flange Series
• NW16 Flange OD: 1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

6.00" OD Conflat Flange (CF):
• Non-Rotatable
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF
600xNW16-VE KF16x600-VE 600xKF16-VE Del Seal CF to Kwik-Flange KF



All NW16 Hardware		6.00" OD Conflat Series Hardware



NW to Conflat Adapters (ALL)		Make Your Own!

**This Vacuum Essential Includes**
Straight Reducer, NW16x600
1-Aluminum Wing Clamp (NW16-075-CW)
1-Stainless/Viton Centering Ring (NW16-075-SR-V)
1-Bolt Kit, Fits: 6.00" OD Conflat (600-BK)
10 Copper Gaskets, Fits: 6.00" OD Conflat (600-CG)
