NW50 to 4.50" Conflat <br> Straight Reducer <br> (NW50x450-VE)

NW50 to 4.50" OD CF

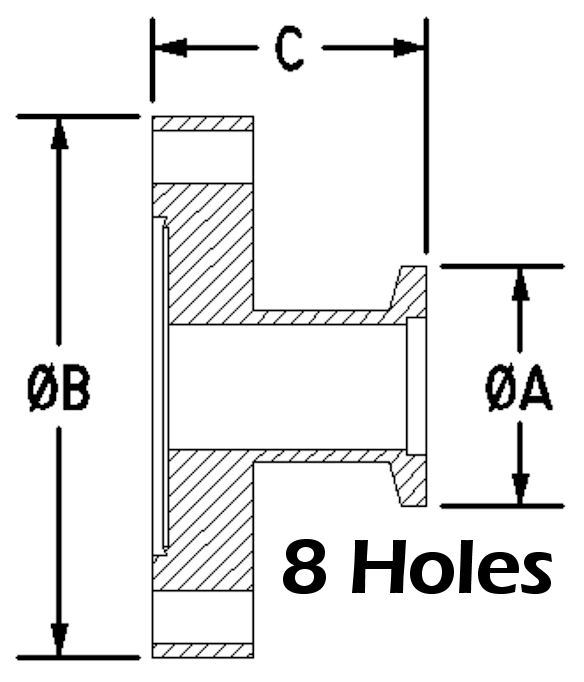

Tube OD: 2"
A: 2.95"
B: 4.50"
C: 1.96"
1.87" Nominal ID
*Vacuum Essential*

NW50x450-VE
NW50 (KF50) to 4.50" OD Conflat Flange (CF)
Vacuum Essential
NW50xDN63CF, KF50xDN63CF, DN63CFxNW50
• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• High Vacuum Adapter

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF

4-1/2" OD Conflat Flange (CF):
• Non-Rotatable
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450
450xNW50-VE KF50x450-VE 450xKF50-VE Del Seal CF to Kwik-Flange KF



All NW50 Hardware		4.50" OD Conflat Series Hardware

**This Vacuum Essential Includes**
Straight Reducer, NW50x450
1-Aluminum Wing Clamp (NW50-200-CW)
1-Stainless/Viton Centering Ring (NW50-200-SR-V)
1-Bolt Kit, Fits: 4.50" OD Conflat (450-BK)
10 Copper Gaskets, Fits: 4.50" OD Conflat (450-CG)
