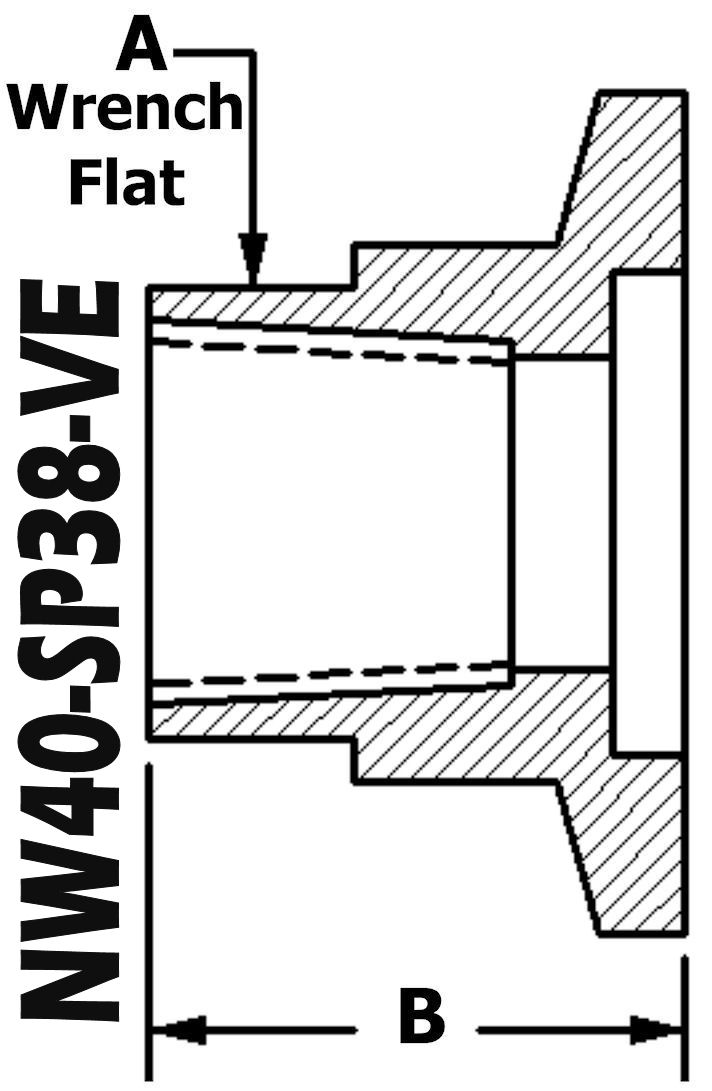

Click to enlargeNW40 To 3/8" Female NPT
A: 1.25"
B: 1.00"
Vacuum Essential

NW40-SP38-VE
NW40 to 3/8" Female NPT Adapter
Vacuum Essential

• Adapter KF40 to 3/8 in. NPT-F Pipe
• NW40 Female National Pipe Thread (FNPT)
• 304 Stainless Fitting

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40-150-SP38-VE


NW40 To 3/8" NPT (Female)
NW40-SP38-VE

NW40-SP38-VE$43.00
