NW16 to 3.38" Conflat <br> Straight Reducer <br> (NW16x338)

NW16 to 3.38" OD Conflat
Straight Reducer

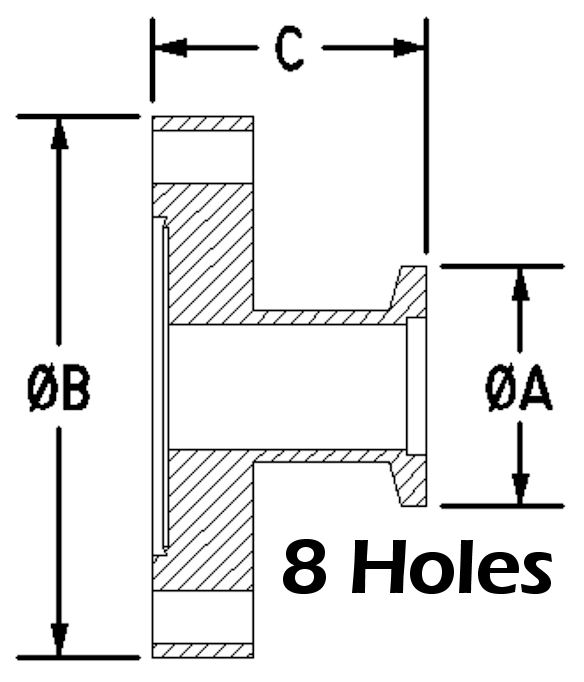

Tube OD: 0.75"
A: 1.18"
B: 3.38"
C: 1.81"

NW16x338
NW16 (KF16) to 3.38" OD Conflat Flange (CF)
• NW16xDN50CF, KF16xDN50CF, DN50CFxNW16
• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• High Vacuum Adapter (338xNW16)

NW16 High Vacuum Flange Series
• NW16 Flange OD: 1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

3.38" OD Conflat Flange (CF):
• Non-Rotatable
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF



All NW16 Hardware		3.38" OD Conflat Series Hardware



NW to Conflat Adapters (ALL)		Make Your Own!

NW10 to NW16 High Vacuum Flange OD

NW10 (KF10) OD: 1.18" – Centering Ring Counter Bore: 0.48"

NW16 (KF16) OD: 1.18" – Centering Ring Counter Bore: 0.68"

Need NW10? Order NW10 to NW16 Adaptive Centering Rings

NW16 Flange OD: Ø1.18"
• NW16 Tube OD: 0.75"
• NW16 Centering Ring Counter Bore: 0.68"

***NW16 Flange Accessories Available Below***
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps

3-3/8" OD CF Conflat Flange
• 8 Clearance (Thru) Bolt Holes
• 0.332" Bolt Hole Diameter

**3.38" OD Conflat Flange Accessories Below**
3.38" OD Conflat Flange - Bolt Kits
3.38" OD Conflat Flange - Copper Gaskets
3.38" OD Conflat Flange - Viton Gaskets
3.38" OD Conflat Flange – Plastic Caps
