NW40 to 2.12" Conflat <br> Straight Reducer <br> (NW40x212-VE)

NW40 to 2.12" OD CF

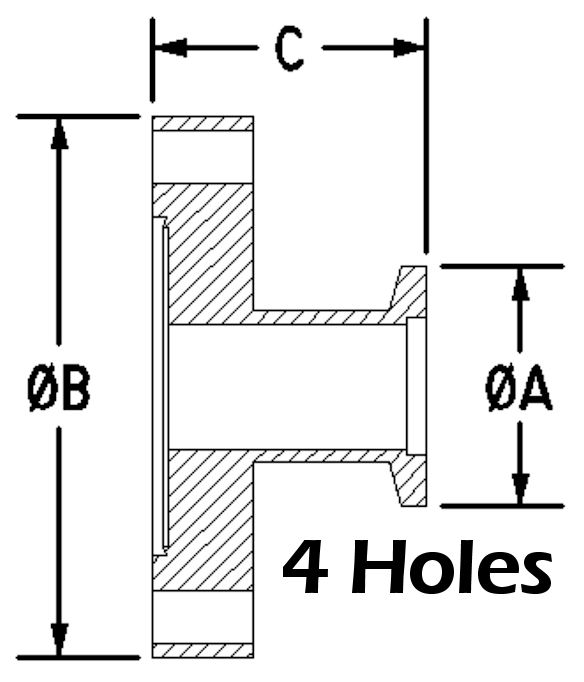

Tube OD: 1.00"
A: 2.16"
B: 2.12"
C: 1.75"
*Vacuum Essential*

NW40x212-VE
NW40 (KF40) to 2.12" OD Conflat Flange (CF)
Vacuum Essential
• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• NW40xDN25CF, KF40xDN25CF, DN25CFxNW40
• High Vacuum Adapter (212xNW40)

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

2.12" OD Conflat Flange (CF):
• 1" Tube OD
• Non-Rotatable
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF
212xNW40-VE KF40x212-VE 212xKF40-VE



All NW40 Hardware		2.12" OD Conflat Series Hardware



NW to Conflat Adapters (ALL)		Make Your Own!

**This Vacuum Essential Includes**
Straight Reducer, NW40x212
1-Aluminum Wing Clamp (NW40-150-CW)
1-Stainless/Viton Centering Ring (NW40-150-SR-V)
1-Bolt Kit, Fits: 2.12" OD Conflat (212-BK)
10 Copper Gaskets, Fits: 2.12" OD Conflat (212-CG)
