NW16x212-VE
NW16 (KF16) to 2.12" OD Conflat Flange (CF)
Vacuum Essential
• NW16xDN25CF, KF16xDN25CF, DN25CFxNW16

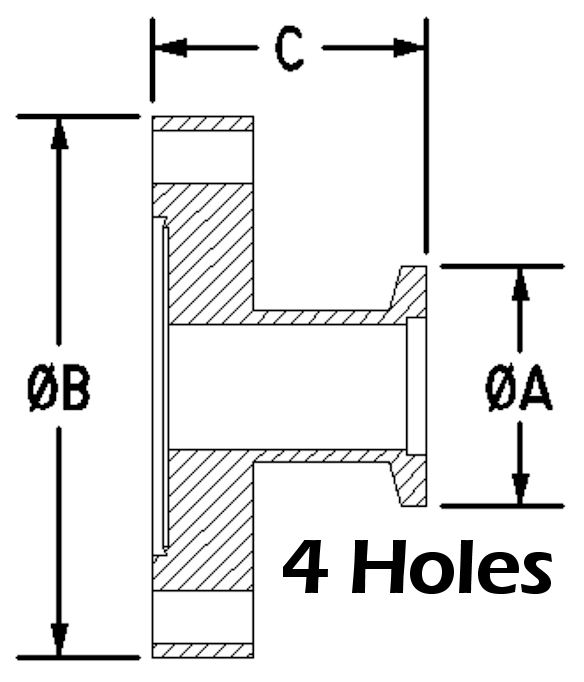

• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• High Vacuum Adapter (212xNW16)
NW16 High Vacuum Flange Series
• NW16 Flange OD: 1.18"
• NW16 Centering Ring Counter Bore: 0.68"
NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF
2.12" OD Conflat Flange (CF):
• Non-Rotatable
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
2.125" OD Conflat Flange (CF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF
212xNW16-VE KF16x212-VE 212xKF16-VE
|
**This Vacuum Essential Includes**
Straight Reducer, NW16x212
1-Aluminum Wing Clamp (NW16-075-CW)
1-Stainless/Viton Centering Ring
(NW16-075-SR-V)
1-Bolt Kit, Fits: 2.12" OD Conflat (212-BK)
10 Copper Gaskets, Fits: 2.12" OD Conflat (212-CG)
