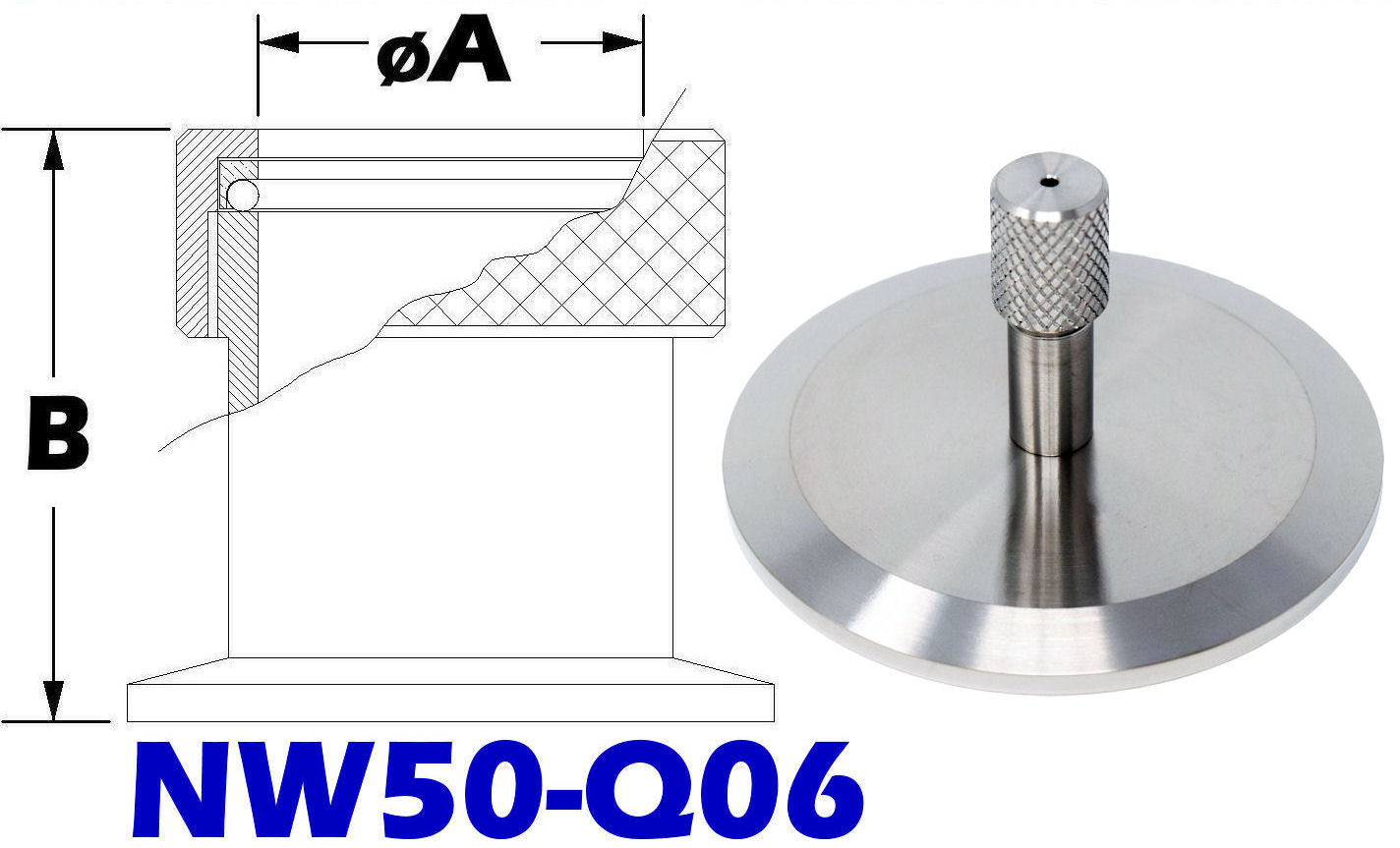

Click to enlargeNW50 to 1/16" Quick Coupling A: 0.07" B: 1.4"

NW50-Q06
NW50 to 0.06" Quick Connect Coupling
• Compression Type Quick Disconnect
• Compression Port
• Flange To Fitting Adapter
• For tube connections & tubulated gauges
• NW50 (KF50) Vacuum Coupling
• 304 Stainless

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50xQ06 Compare to: P109145 K200XDS-06 734034


NW50 Quick Coupling To
1/16" Tube Size
(NW50-Q06)
NW50-Q06$85.00

Click to enlarge
Click to enlarge
06 Series (1/16") O-Ring, Viton


All NW50 Hardware


Click to enlarge
Click to enlarge
NW Quick Couplings (ALL)


Quick Couplings (ALL)



***NW50 Flange Accessories Available Below***
NW50 Centering Rings
NW50 Clamps, All Types
NW50 Plastic Caps
