NW40 to 1/4" Male NPT <br> (NW40x25NPT-A)

NW40 to 1/4" Male NPT
Aluminum
Wrench Flats: 0.62"
Thru: 0.28"
1.25" OAL

NW40x25NPT-A
• NW40 (KF40) OD: Ø2.18"
• 0.25" Male Pipe Adapter (NPT)
• 6061 T6 Aluminum

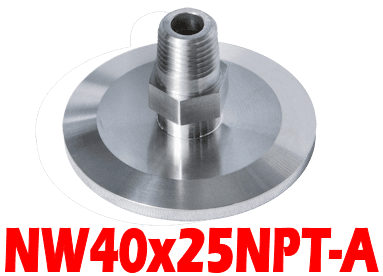

• Photo is NW40x25NPT-A

NW40 to 1/4" Male Pipe Adapter (NPT, MNPT)
• NW40, KF40 Male National Pipe Thread Adaptor

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40x25NPT-A Compare to: KAMP400250A NW40x25NPT-A-VE NW40x25NPTA-VE



Teflon Tape - For Use With 1/4" NPT & Larger		91-S Silicone Vacuum Grease



NW40 Male NPT (Stainless)		NW40 Male NPT (Aluminum)



NW Female NPT		NW Ring and Clamp Assemblies

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

***NW40 Flange Accessories Available Below***
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps
