Click to enlargeNW40 to 1" Female NPT, Aluminum OAL: 1.62" Wrench Flats: 1.56"

NW40-AP100-VE
NW40 to 1.00" Female NPT Adapter
Vacuum Essential
• NW40 (KF40) Flange OD: Ø2.18"
• Use With Teflon Tape
• 6061 T6 Aluminum

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40-150-AP100-VE Adapter Grip Tight KF-40 to 1 inch NPT-Female KAFP401000A


NW40 To 1" NPT (Female)
NW40-AP100-VE
NW40-AP100-VE$35.00

Click to enlarge
Click to enlarge
NW Female NPT


All NW40 Hardware


Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/4" NPT & Larger


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
NW40 Male NPT (Stainless)


NW40 Male NPT (Aluminum)



NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

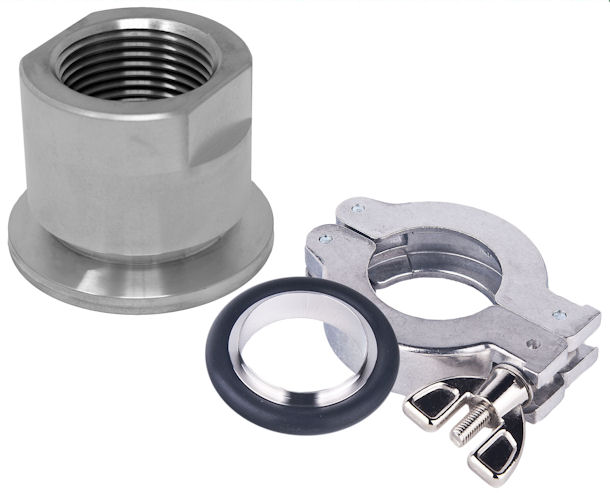

***This Vacuum Essential Includes***
• NW40 To 1" Female NPT: NW40-150-AP100
1-Aluminum Wing Clamp (NW40-150-CW)
1-Stainless/Viton Centering Ring (NW40-150-SR-V)
