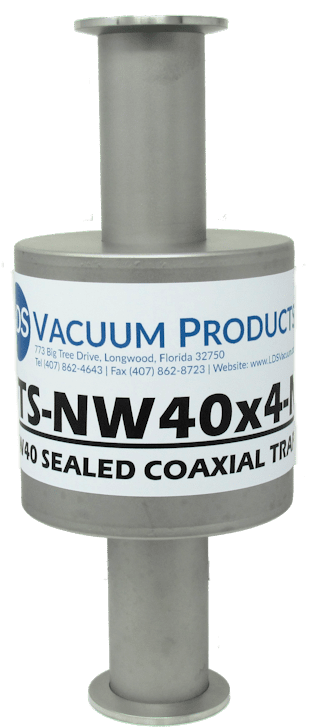

Click to enlargeNW40 Coaxial Foreline Trap Sealed, Non-Refillable SS Wool Element OD Polished Finish 8.80" OAL

CFTS-NW40x4-NS
NW40 CFTS Series Sealed Trap
• Coaxial Foreline Vapor Trap
• Sealed, Non-Refillable
• NW, KF and QF Flange Ports
• 4" Body
• S/S Metal Wool Element - Non-replaceable
• Once unit is saturated, must be discarded
• 8.80" OAL

Replaces CFTS-NW40x4 Due To Vendor Price Increase

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF


NW40 Coaxial (Sealed) Foreline Trap
CFTS-NW40x4-NS
CFTS-NW40x4-NS$389.00

Click to enlarge
Click to enlarge
Coaxial Foreline Refillable Traps


All NW40 Hardware
