NW40 Coaxial Foreline Trap Refillable SS Media, 1 Supplied Updated Body Style

CFTR-NW40x4-STY3
NW40 Coaxial Foreline Vacuum Pump Trap with Refillable Stainless Mesh Media (1) Supplied

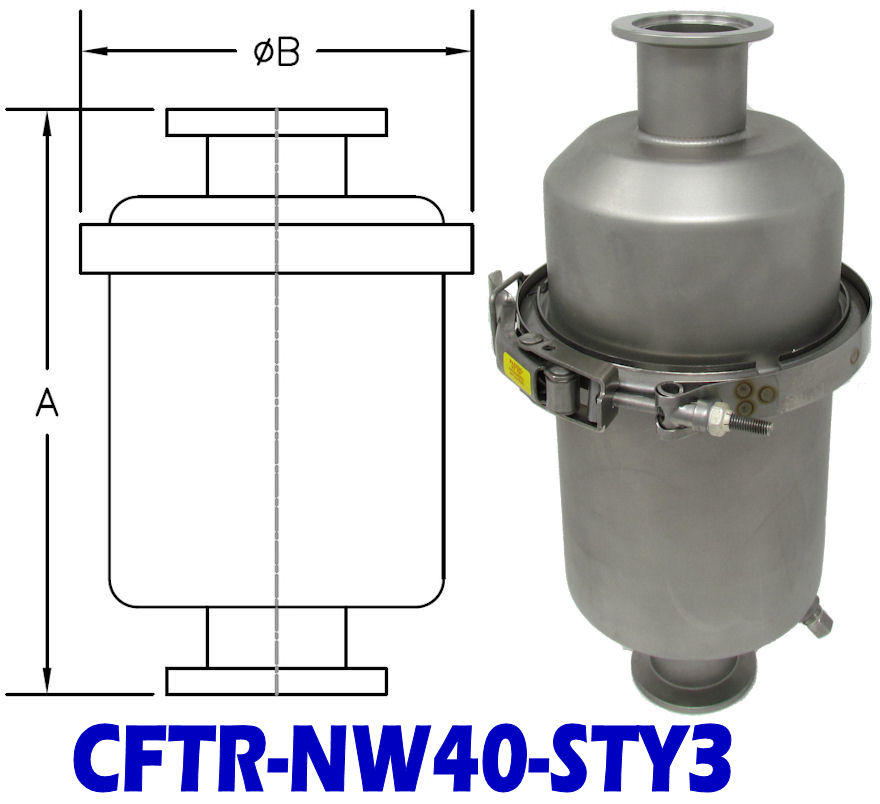

• 4" OD Body
• A: 11"
• B: 4.82"
• NW40 Foreline Vapor Trap
• Metal Wool Element Trap
• Tumble Finish

Replaces CFTR-NW40x4-STY2
Updated Body Style


NW40 Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
CFTR-NW40x4-STY2 Compare to: CFTR-NW40x4 TAR4CS150QF FCT-4-1502-NWB 7500140 VSRC-400-QF40-S


NW40 Coaxial (Refillable) Foreline Trap
CFTR-NW40x4-STY3
CFTR-NW40x4-STY3Price: $748.00Sale: $598.00

Click to enlargeSTY2 Series Replacement Media
One Supplied With Trap Purchase

Click to enlargeAll NW40 Hardware

Coaxial Foreline Refillable Traps (CFTR Series)
NW (KF, QF) Series Flanges
Coaxial Metal Sieve Trap
Replacement Stainless Media Supplied In Trap
• Trap Body: 304 Stainless Steel
• Flanges: 304 Stainless Steel
• Sieve: 304 Stainless Steel
• O-Ring: Viton (FKM)
• Vacuum range: >1 x 10-8 Torr
• Temperature range: -20°C to 150°C
• Body: 4" OD

Coaxial Foreline Refillable Traps (metal sieve traps) use a fibrous stainless steel mesh for removal of hydrocarbons or large particulates. The coaxial design provides maximum filtering and flow. The two piece design allows for easy cleaning and removal/replacement of the filter element.

Will reduce or eliminate the undesirable effects of mechanical vacuum pump oil backstreaming. The Assimilation trap is one of the most effective, durable and easy to use foreline traps.

Construction is of 304 stainless steel with an easy open body by way of a machined flange set held together with a unique quick toggle stainless steel clamp.
