NW50 To NW16 <br> Aluminum Reducer <br> (NW50x16-ACR-VE)

NW50x16-ACR-VE
NW50 to NW16 (KF50 to KF16)
Conical Reducer (Reducing Nipple)
• Aluminum 6061-T6
• 1.57" OAL
Vacuum Essential

NW16 Flange OD: Ø1.18"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

NW50 (KF50) Flange
• NW50 (KF50) Flange OD: Ø2.95"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF

Flange to Flange High Vacuum Adapter Fitting
NW50xNW16-ACR-VE NW16xNW50-ACR-VE KF50x16-ACR-VE KF50xKF16-ACR-VE KF16xKF50-ACR-VE KF-50 to KF-16 ISO-KF NW-50 to NW-16



All NW16 Hardware		All NW50 Hardware

NW16 Flange OD: 1.18"
NW50 Flange OD: 2.95

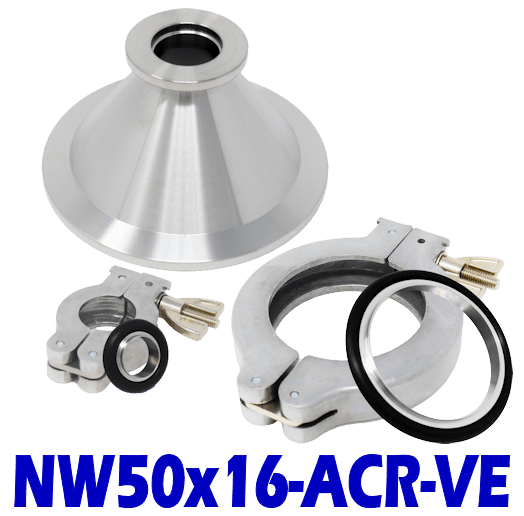

**This Vacuum Essential Includes**
NW50x16-ACR
Aluminum Wing Clamps, 1 Each
(NW16-075-CW)
(NW50-200-CW)
Stainless/Viton Centering Rings, 1 Each
(NW16-075-SR-V)
(NW50-200-SR-V)
