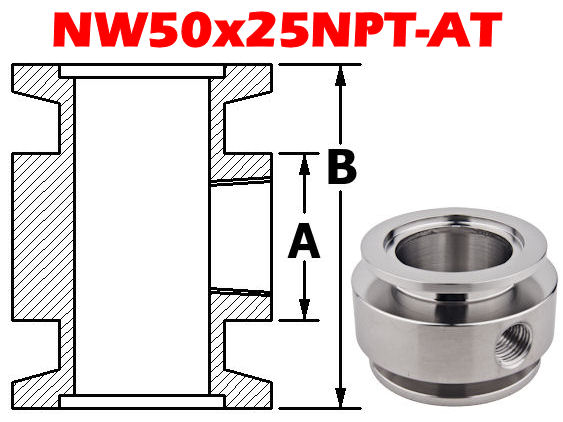

NW50 Adaptive Tee To 1/4" Female NPT

NW50x25NPT-AT
NW50 to 1/4" Female Adaptive Tee, Stainless
• NW50 (KF50)
• Adaptive Tee, Aluminum
• 1/4" Female NPT
• A: 0.76"
• B: 1.57"

Former PN: NW50x1/4NPT-AT

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Tube OD: 2"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50x25NPT-AT Compare to: QF50x1/4NPT-AT 4000234 100319506 NW50x25NPT-AT-VE


NW50 to 1/4" NPT Female Adaptive Tee
(NW50x25NPT-AT)
NW50x25NPT-ATPrice: $86.00Sale: $61.00

Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/4" NPT & Larger


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
All NW50 Hardware


Adaptive Tees (All)



NW50 (KF50) Flange OD: Ø2.95"
• NW50 Tube OD: 2.00"

***NW50 Flange Accessories Available Below***
NW50 Centering Rings
NW50 Clamps, All Types
NW50 Plastic Caps
