Click to enlargeNW40 To ISO160 Straight Reducer *Vacuum Essential* 6.5 lbs.

NW40xISO160-VE
NW40xISO160 Straight Reducer
• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO160xNW40)
• High Vacuum Fitting
• OD Polish
Vacuum Essential

NW40 to ISO160 Straight Reducing Nipple Adapter

ISO160 (ISO-K) Series
• High Vacuum Flange OD: Ø7.09"
• ISO-K Claw Clamp Style

ISO160 High Vacuum Flange Equivalents:
ISO-160, LF160, NW160, NW-160, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF


Straight Reducer
(NW40xISO160-VE)
NW40xISO160-VE$273.00

Click to enlarge
Click to enlarge
ISO160 Series Hardware


All NW40 Hardware


Click to enlarge
Click to enlarge
NW40 to ISO Straight Reducers


NW Series to ISO Conical Reducers



LDS Custom Nipple Fabricator

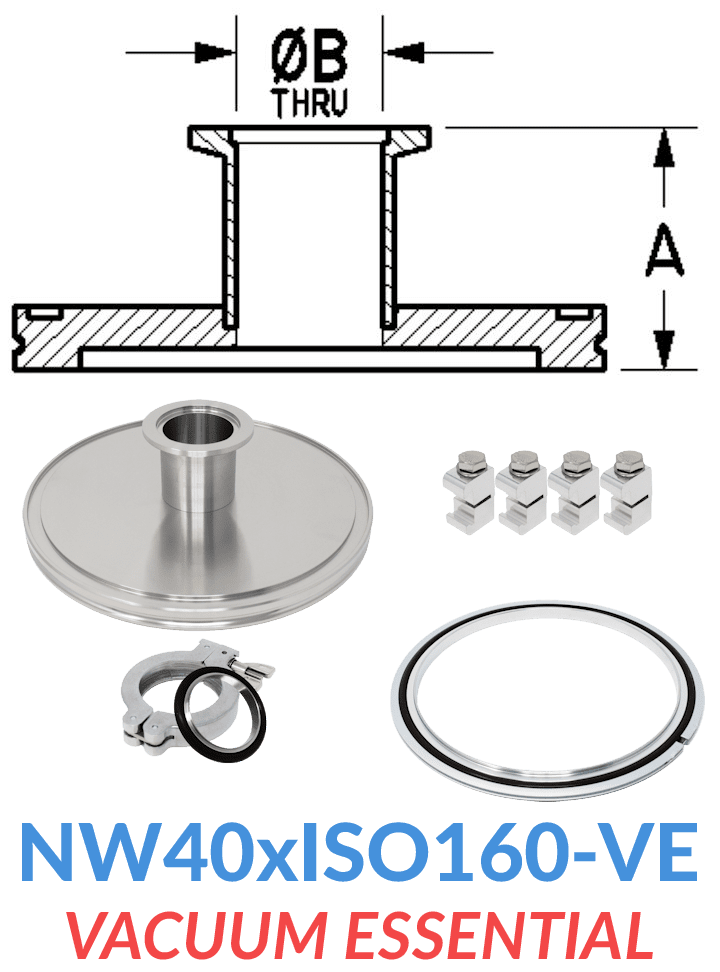

***This Vacuum Essential Includes***
NW40 to ISO160 Straight Reducer: NW40xISO160

ISO160 Series
4 Aluminum Double Claw Clamps (ISO160-250-DC)
1 Stainless/Viton Centering Ring (ISO160-600-SR-V)

NW40 Series
1 Aluminum Wing Clamp (NW40-150-CW)
1 Stainless/Viton Centering Ring (NW40-150-SR-V)
