Straight Reducer <br> (NW40xISO100-VE)

NW40xISO100-VE
NW40xISO100 Straight Reducer
• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO100xNW40)
• High Vacuum Fitting
• OD Polish

NW40 to ISO100 Straight Reducing Nipple Adapter

ISO100 (ISO-K) Series
• High Vacuum Flange OD: Ø5.12"
• ISO-K Claw Clamp Style
Vacuum Essential

ISO100 High Vacuum Flange Equivalents:
ISO-100, LF100, NW100, NW-100, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF



ISO100 Series Hardware		All NW40 Hardware



NW40 to ISO Straight Reducers		NW Series to ISO Conical Reducers

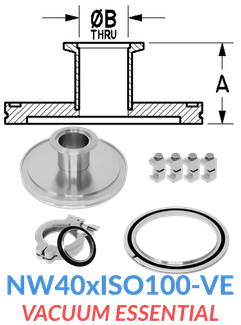

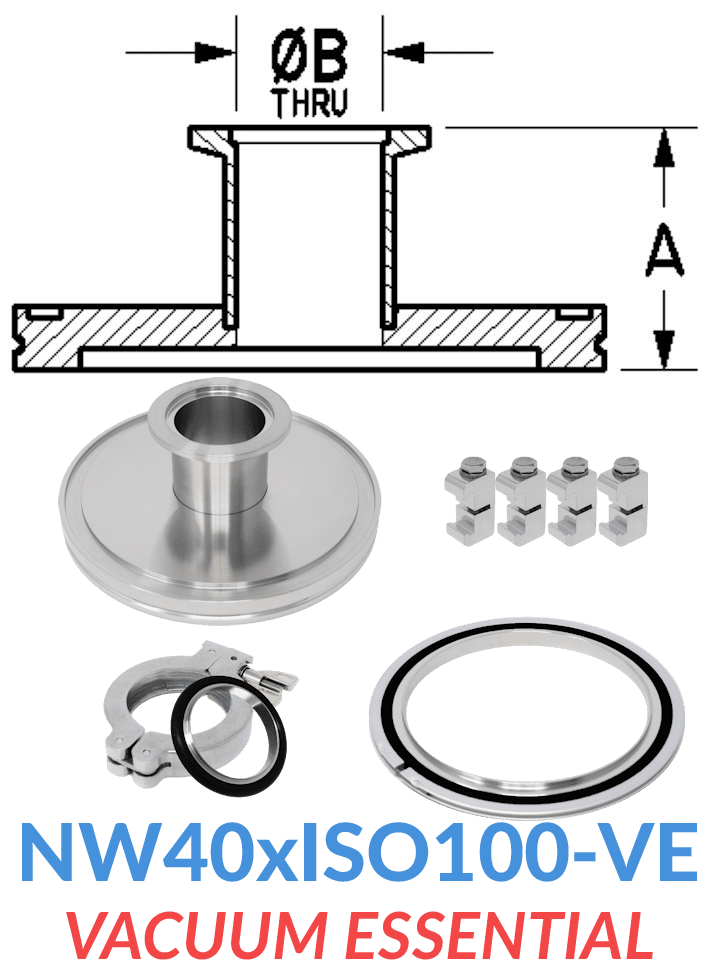

***This Vacuum Essential Includes***
NW40 to ISO100 Straight Reducer: NW40xISO100

ISO100 Series
4 Aluminum Double Claw Clamps (ISO63-100-DC)
1 Stainless/Viton Centering Ring (ISO100-400-SR-V)

NW40 Series
1 Aluminum Wing Clamp (NW40-150-CW)
1 Stainless/Viton Centering Ring (NW40-150-SR-V)
