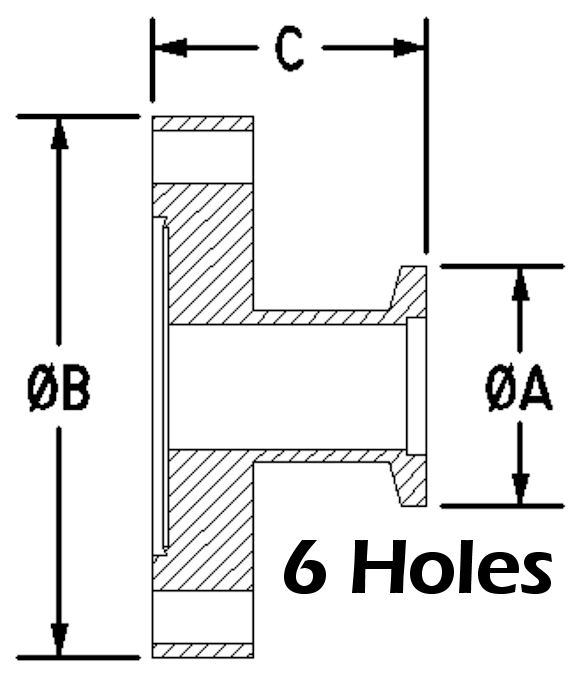

Click to enlargeNW40 to 2.75" OD Conflat Straight Reducer Tube OD: 1.50" A: 2.16" B: 2.75" C: 1.78"

NW40x275
NW40 (KF40) to 2.75" OD Conflat Flange (CF)
• Straight Reducing Nipple
• Flange to Flange Straight Reducer
• High Vacuum Adapter (275xNW40)

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF


2-3/4" OD CF Conflat Flange:
• Non-Rotatable
• 1.50" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF
NW40x275 Compare to: 100315605 730003 K150X275 F0275XQF40 P101288 QF40X275 5000682 AN-NW-40-275 CF275XQF40-150-N-1.78 NW40x275-VE 275xNW40-VE FA0275NW40S


NW40 to 2.75" Conflat
Straight Reducer
(NW40x275)
NW40x275Price: $170.00Sale: $62.00

Click to enlarge
Click to enlarge
All NW40 Hardware


2.75" OD Conflat Series Hardware
