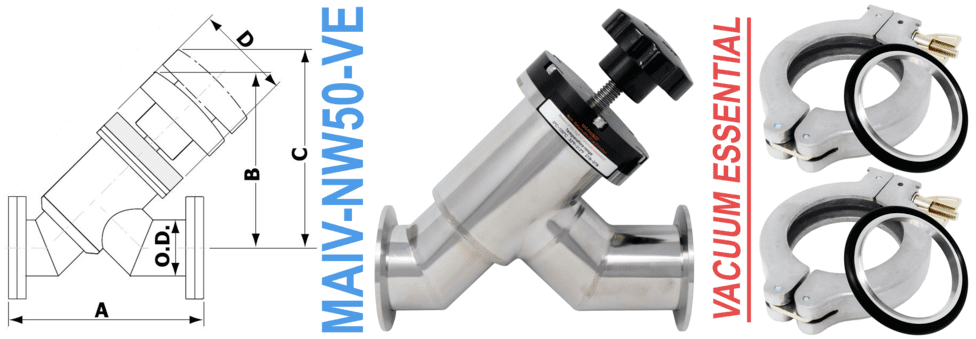

NW50 Manual Angle Inline Valve Tube OD: 2.00"

MAIV-NW50-VE
NW50 Manual Angle Inline Valve
NW50 (KF50) OD: 2.95"
Viton (Fluorocarbon) Seals
• A: 7.07"
• B: 5.71"
• C: 6.68"
• D: 2.83"
Updated Body Style

NW50 (KF50) Flange OD: Ø2.95"
• NW50 Tube OD: 2"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF

VACUUM ESSENTIAL
• Includes Wing Clamps & Centering Rings

Angle In-Line Poppet High Vacuum Valve


NW50 Manual Angle Inline Valve
(MAIV-NW50-VE)
MAIV-NW50-VE$487.00

Click to enlarge
Click to enlarge
Pneumatic Angle Inline Valves


All NW50 Hardware


Click to enlarge
NW Valves (ALL)



***This Vacuum Essential Includes***
NW50 Manual Angle Inline Valve MAIV-NW50
2-Aluminum Wing Clamps (NW50-200-CW)
2-Stainless/Viton Centering Rings (NW50-200-SR-V)
