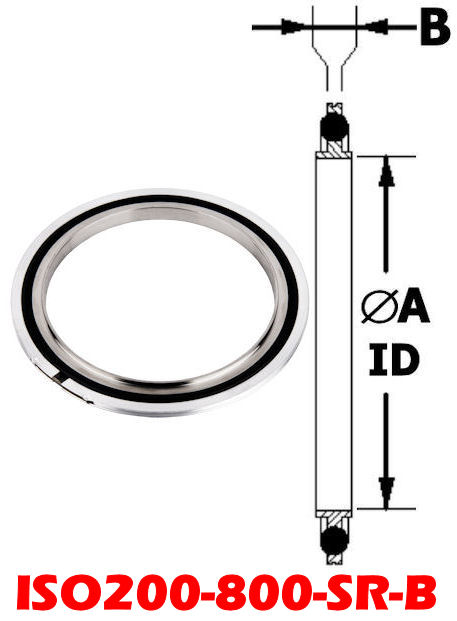

ISO200 Centering Ring <br> (ISO200-800-SR-B)

ISO200-800-SR-B
ISO200 Series Stainless Centering Ring with Buna O'Ring and Aluminum Outer (Spacer) Ring
• A: 8.24"
• B: 0.15"

Buna-N O-Ring:
• 100°C Maximum
• Also Known As Nitrile (NBR) O Ring

ISO200 Centering Ring with Aluminum Outer Ring
(Spacer Ring) - High Vacuum Hardware

Fits ISO200 High Vacuum Flange Equivalents:
ISO-200, LF200, NW200, NW-200, Large Flange,
ISO-LF, ISO-K, ISO-MF

Fits ISO-B200 High Vacuum Flange Equivalents
ISO-F, ISO-LFB, ISOB-200, ISOB200, ISO200-F
LFB200, NW200, NW-200, Bolted Large Flange

ISO200 Series High Vacuum Hardware
ISO200-800-SR-B Compare to: 4500018 LF200-800-SR-B QF200-SABR B27158080 LF200-800-CTR-BN ISO200-800-SRB



ISO200 Series Hardware		ISO200 Buna O-Ring Replacement



ISO200 Centering Ring Assemblies		ISO200 Aluminum Outer Ring Replacement



ISO200 Mesh Screen Centering Ring		Single Claw Clamp



Double Claw Clamp, Aluminum		Double Claw Clamp, Stainless



ISO-B200 Flange Bolts
