Click to enlarge90° Mitered Elbow, ISO250 Flanges Unpolished

ISO250-1000-E90M

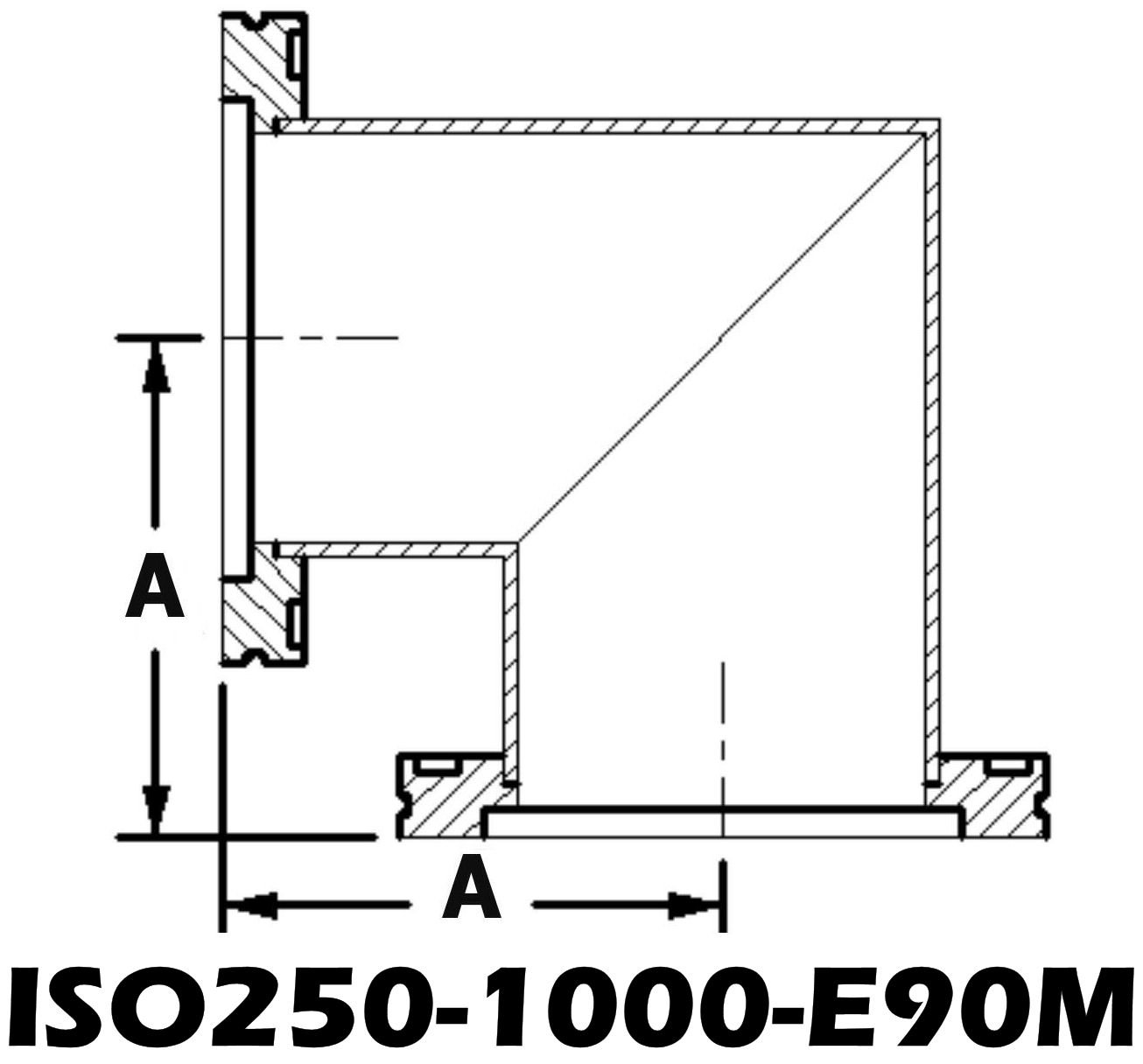

ISO250 High Vacuum Miter Elbow
90 Degree Mitered Elbow
• 304 Stainless
• 31 lbs.

ISO250 (ISO-K) Series
• High Vacuum Flange OD: Ø11.42"
• Tube OD: 10"
• ISO-K Claw Clamp Style

ISO250 High Vacuum Flange Equivalents:
ISO-250, LF250, NW250, NW-250, Large Flange,
ISO-LF, ISO-K, ISO-MF

UNPOLISHED, No Cancel/Return Item
Tolerance for this Large Fitting is ±0.063"
ISO250-1000-E90M Compare to: ISO250-1000-E90-M 4500285 LF250-1000-E90M QF250-E90K 2E-ISO-250-OF-M L1000-2LM 823004 ISO250-E90M-VE


ISO250 Mitered Elbow
(ISO250-1000-E90M)
ISO250-1000-E90MPrice: $2,225.00Sale: $1,861.00

Click to enlarge
Click to enlarge
ISO250 Series Hardware


ISO (ISO-K) Series Elbows



*Don't Forget Your ISO250 Series Accessories*
ISO Series Claw Clamps
ISO250 Centering Rings
ISO250 Plastic Caps
