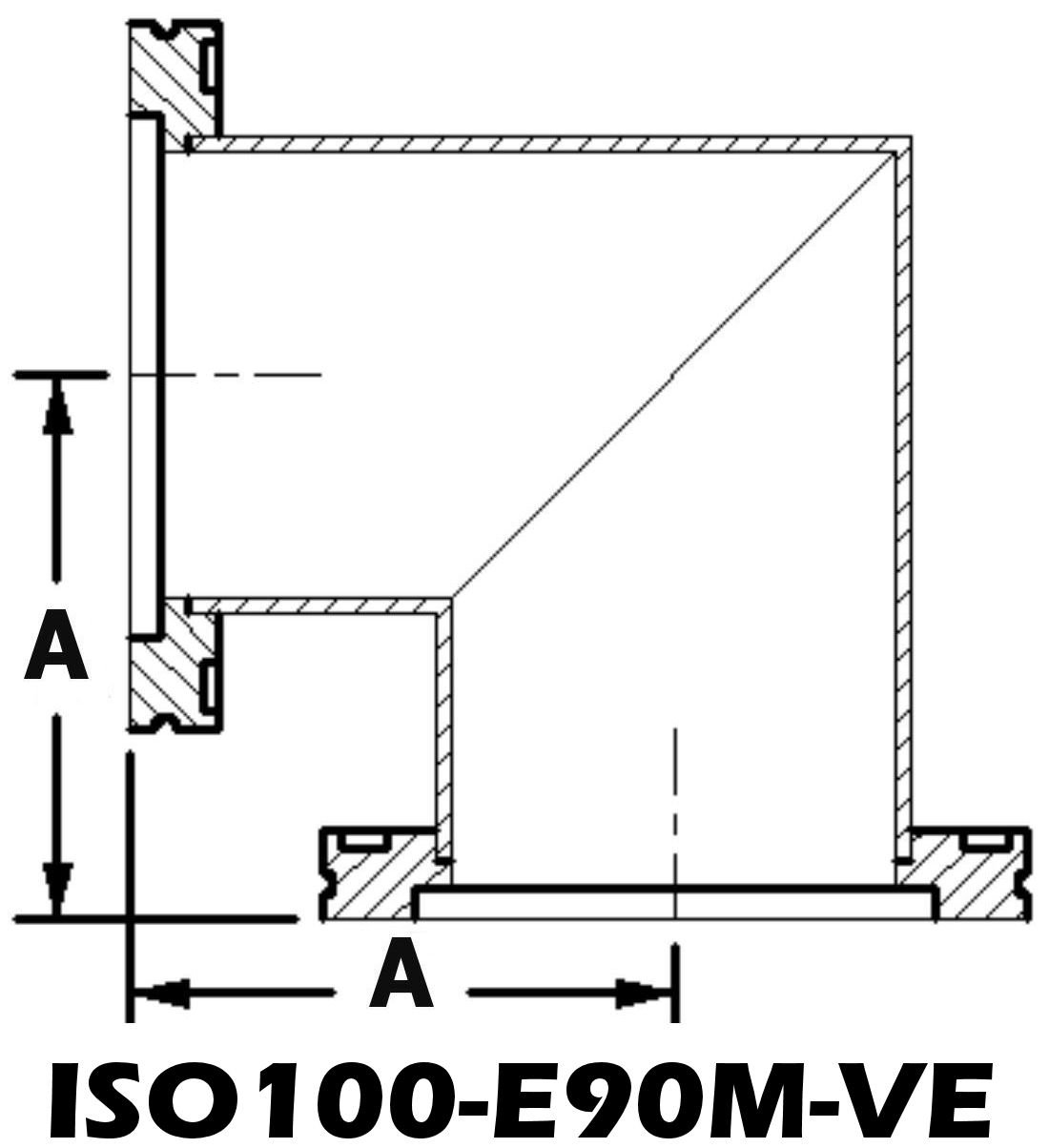

Click to enlarge90° Mitred Elbow, ISO100 Flanges

ISO100-E90M-VE
ISO100 High Vacuum Miter Elbow
90 Degree Mitered Elbow
Vacuum Essential
• 304 Stainless
• OD Polish
• 7 lbs.
• A: 4.25"

ISO100 (ISO-K) Series
• High Vacuum Flange OD: Ø5.12"
• Tube OD: 4.00"
• ISO-K Claw Clamp Style

ISO100 High Vacuum Flange Equivalents:
ISO-100, LF100, NW100, NW-100, Large Flange,
ISO-LF, ISO-K, ISO-MF
ISO100-400-E90-M ISO100-400-E90M


ISO100 Mitered Elbow
(ISO100-E90M-VE)
ISO100-E90M-VE$293.00

Click to enlarge
Click to enlarge
ISO100 Series Hardware


ISO (ISO-K) Series Elbows



*** Vacuum Essentials Include ***
90 Degree Mitered Elbow, ISO100
8 AL Double Claw Clamps ISO63-100-DC
2 SS/Viton Centering Rings ISO100-400-SR-V
