ISO80 & 4.62" OD Conflat <br> Non-Reducing Cross <br> ISO80x462-NRX

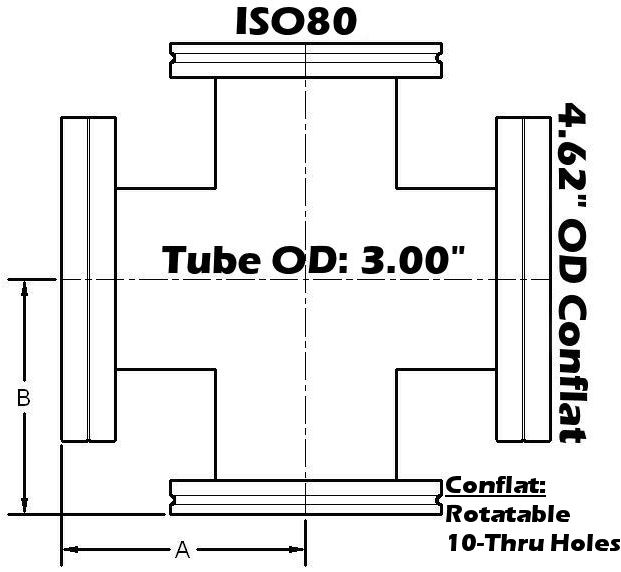

NON-Reducing Cross
ISO80 and 4.62" OD Conflat Flanges
A: 3.50"
B: 3.63"

ISO80x462-NRX
ISO80 & 4.62" OD CF Non-Reducing Cross
Crosses With The Same Size Tube OD: 3"
• All Conflat Flanges (CF) Are Rotatable
• 304 Stainless
• High Vacuum Adapters

ISO80 (ISO-K) Series
• High Vacuum Flange OD: Ø4.33"
• Tube OD: 3.00"
• ISO-K Claw Clamp Style

ISO80 High Vacuum Flange Equivalents:
ISO-80, LF80, NW80, NW-80, Large Flange, ISO-LF

4-5/8" OD Conflat Flange (CF):
• 3.00" Tube OD
• 10-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.625" OD Conflat Flange (CFF) Equivalents:
• CF462, DN75CF, NW75CF, 462CF



ISO80 Series Hardware		4.62" OD Conflat Series Hardware



Non-Reducing Series		ISOxConflat Adapters



All ISO Crosses		All Conflat Crosses
