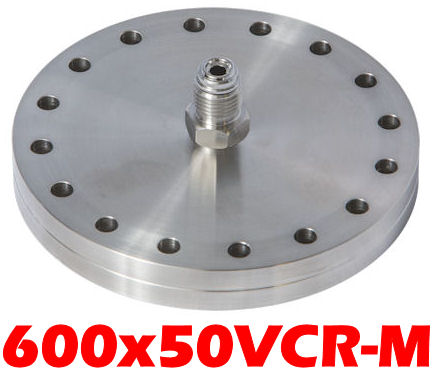

Click to enlarge6.00" OD CF Flange to 1/2" Male VCR®

600x50VCR-M
6.00" OD Conflat to 0.50" VCR Male Adapter
6" CF to Male 8 VCR (VCR8)
• Flange to Fitting Adapter
• Non-Rotatable
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal

High and Ultra High Vacuum (UHV) Fitting
Image Shown for Reference Only


6.00" Conflat Flange to 1/2" Male VCR
(600x50VCR-M)
600x50VCR-M$240.00

Click to enlarge
Click to enlarge
6.00" OD Conflat Series Hardware


VCR Copper Gaskets (All)


Click to enlarge
Click to enlarge
Conflat to Male VCR Adapters (ALL)


Conflat to Female VCR Adapters (ALL)



VCR Reference Guide

1/8" = VCR2



1/2" = VCR8

1/4" = VCR4

3/4" = VCR12

3/8" = VCR6

1" = VCR16

**6.00" OD Conflat Flange Accessories Below**
6.00" OD Conflat Flange - Bolt Kits
6.00" OD Conflat Flange - Copper Gaskets
6.00" OD Conflat Flange - Viton Gaskets
6.00" OD Conflat Flange – Plastic Caps

***VCR Copper Gaskets Available Below***
VCR Copper Gaskets, All Sizes
