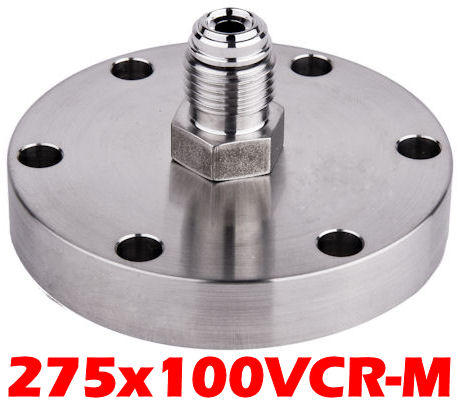

Click to enlarge2.75" OD Conflat to 1" Male VCRŽ

275x100VCR-M
2.75" OD Conflat to 1" VCR Male Adapter
2-3/4" CF to Male 16 VCR (VCR16)
• Non-Rotatable
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF, Del Seal

High and Ultra High Vacuum (UHV) Fitting
Image Shown for Reference Only
Compare to: FAVM1000275 414011 VCR16 VCR100-275 275x100-VCR-M 275x100VCRM


2.75" Conflat Flange to 1.00" Male VCR
(275x100VCR-M)
275x100VCR-MPrice: $262.00Sale: $214.00

Click to enlarge
Click to enlarge
2.75" OD Conflat Series Hardware


VCR Copper Gaskets (All)


Click to enlarge
Click to enlarge
Conflat to Male VCR Adapters (ALL)


Conflat to Female VCR Adapters (ALL)



VCR Reference Guide

1/8" = VCR2



1/2" = VCR8

1/4" = VCR4

3/4" = VCR12

3/8" = VCR6

1" = VCR16

**2.75" OD Conflat Flange Accessories Below**
2.75" OD Conflat - Bolt Kits
2.75" OD Conflat - Copper Gaskets
2.75" OD Conflat - Viton Gaskets
2.75" OD Conflat - Plastic Caps

***VCR Copper Gaskets Available Below***
VCR Copper Gaskets, All Sizes
