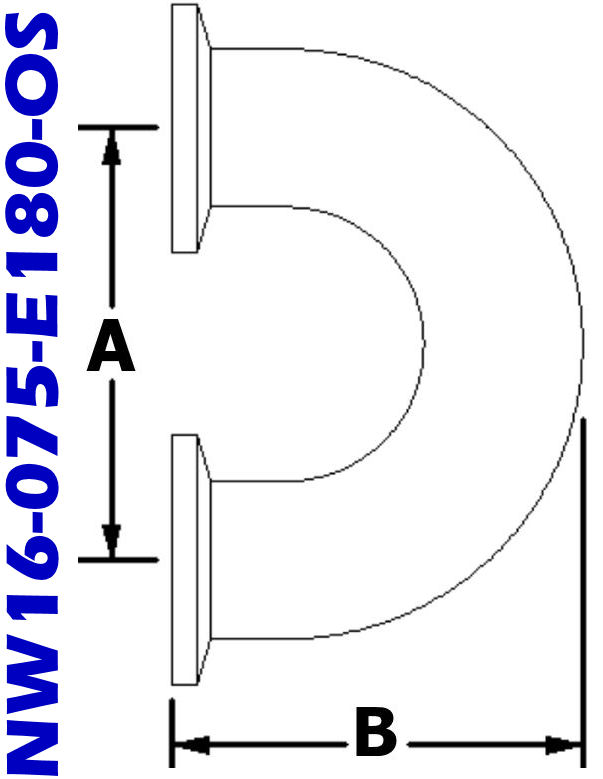

Click to enlarge180° Return Elbow, NW16 A: 2.25" B: 1.67"

NW16-075-E180-OS
180 Degree Radius Elbow, NW16
• NW16 (KF16, QF16) Flange
• High Vacuum Elbow
• 304 Stainless
• OD Polish

NW16 Flange OD: 1.18"
• NW16 Tube OD: 0.75"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF
Overstock Price!

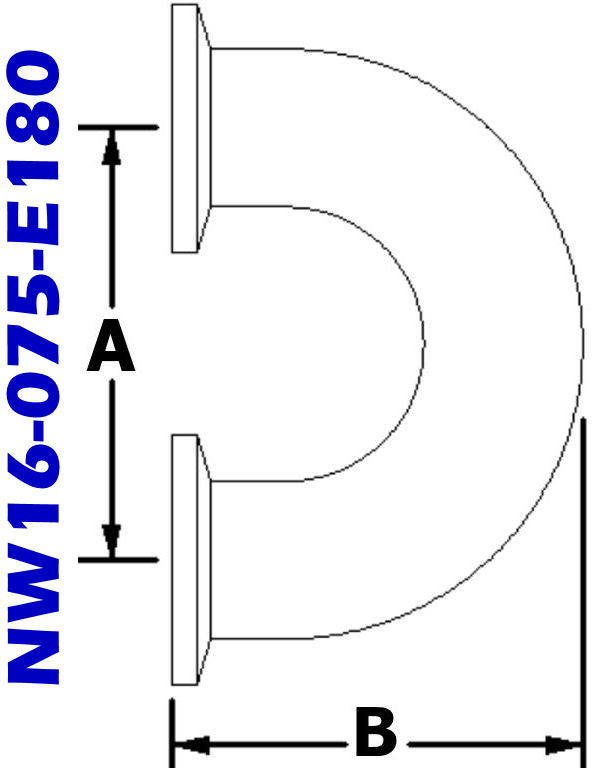

NW16-075-E180 Compare to: P102650 4000466 QF16-075-E180-2.25 QF16-075-E180 QF16-075E180 NW16-075-E180-VE NW16-E180-VE


180° Return Elbow
(NW16-075-E180-OS)
NW16-075-E180-OSPrice: $130.94Overstock: $35.00

Click to enlarge
Click to enlarge
All NW16 Hardware


180° Elbows, NW Series


Click to enlarge
Click to enlarge
NW Elbows (All)


Need NW10?
Adaptive Centering Rings



NW16 Flange OD: 1.18"
• NW16 Tube OD: 0.75"
• NW16 Centering Ring Counter Bore: 0.68"

***NW16 Flange Accessories Available Below***
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps
