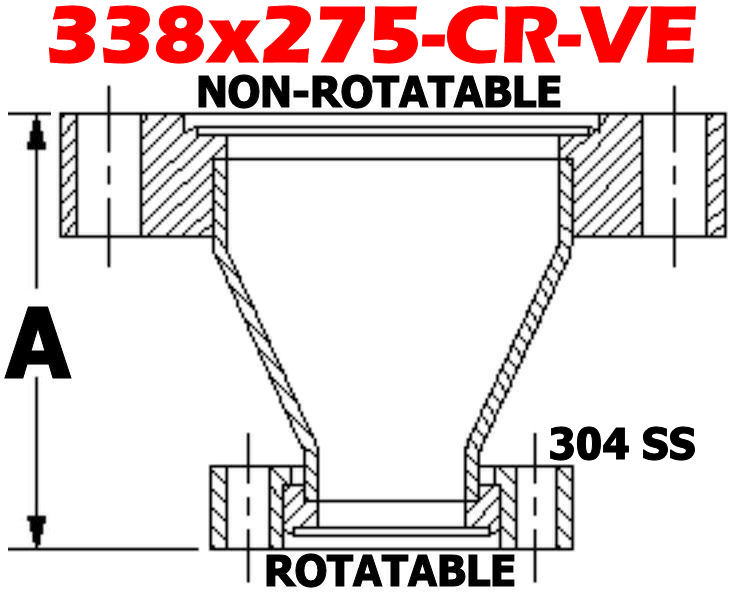

Click to enlarge3.38" CF to 2.75" CF Conical Reducer 2.80" OAL

338x275-CR-VE
3.38" Conflat to 2.75" Conflat Conical Reducing Nipple
• 338x275 CFF (DN50CFxDN40CF)
• 304 Stainless
• OD Polish
• Flange to Flange UHV Vacuum Adapter
• CFxCF Conical Reducer

Vacuum Essential (VE) Series Include
338x275-CR
20-Copper Gaskets (CG Series)
2-Bolt Kits (BK Series)


2-3/4" OD CF Conflat Flange (CF):
• Rotatable
• 1.5" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

3.38" OD Conflat Flange (CF):
• Non-Rotatable
• 2" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CFF) Equivalents:
338CF, CF338, DN50CF, NW50CF, 3.375" Del Seal
275x338-CR-VE


3.38" OD CF to 2.75" CF
Conflat Conical Reducer
338x275-CR-VE
338x275-CR-VE$227.00

Click to enlarge
Click to enlarge
2.75" OD Conflat Series Hardware


3.38" OD Conflat Series Hardware



***This Vacuum Essential Includes***
• Flange to Flange Adapter
• 1-Bolt Kit (275-BK Series)
• 10-Copper Gaskets (275-CG Series)

• 1-Bolt Kit (338-BK Series)
• 10-Copper Gaskets (338-CG Series)
