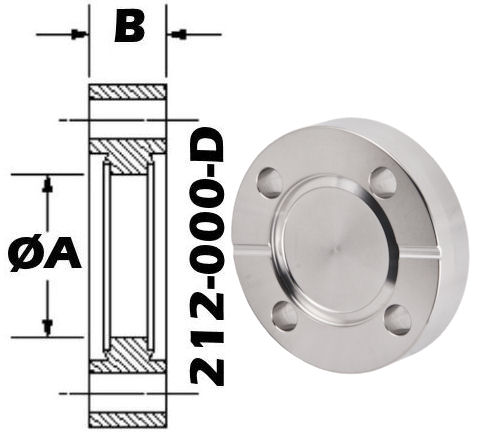

Click to enlargeBLANK 2.12" OD Double Sided Conflat

212-000-D
2.12" OD Double-Sided Conflat Flange
BLANK
• A: -
• B: 0.47"



2.12" OD Double-Sided CF Conflat Flange
• Double Faced 212 CF Flange
• Knife Edge on Both Sides
• 4 Clearance (Thru) Holes
• Bolt Hole Diameter: 0.265"
• Non-Rotatable
• 304 Stainless

2.125" OD Conflat Flange (CF) Same As:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF

Double-Faced Conflat Flanges (CF)
High Vacuum & Ultra High Vacuum (UHV) Flanges


2.12" Double Sided CF BLANK
(212-000-D)
212-000-D$74.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


2.12" OD Conflat
Double Sided


Click to enlarge
Click to enlarge
2.12" OD Conflat
Rotatable
THRU Hole Series


2.12" OD Conflat
Non-Rotatable
THRU Hole Series


Click to enlarge
Click to enlarge
2.12" OD Conflat
Rotatable
TAPPED Hole Series


2.12" OD Conflat
Non-Rotatable
TAPPED Hole Series



**2.12" OD Conflat Flange Accessories Below**
Copper Gaskets - 2.12" OD Conflat
Viton Gaskets - 2.12" OD Conflat
Bolt Kit (BKD Series) - 2.12" OD Double Sided Conflat
