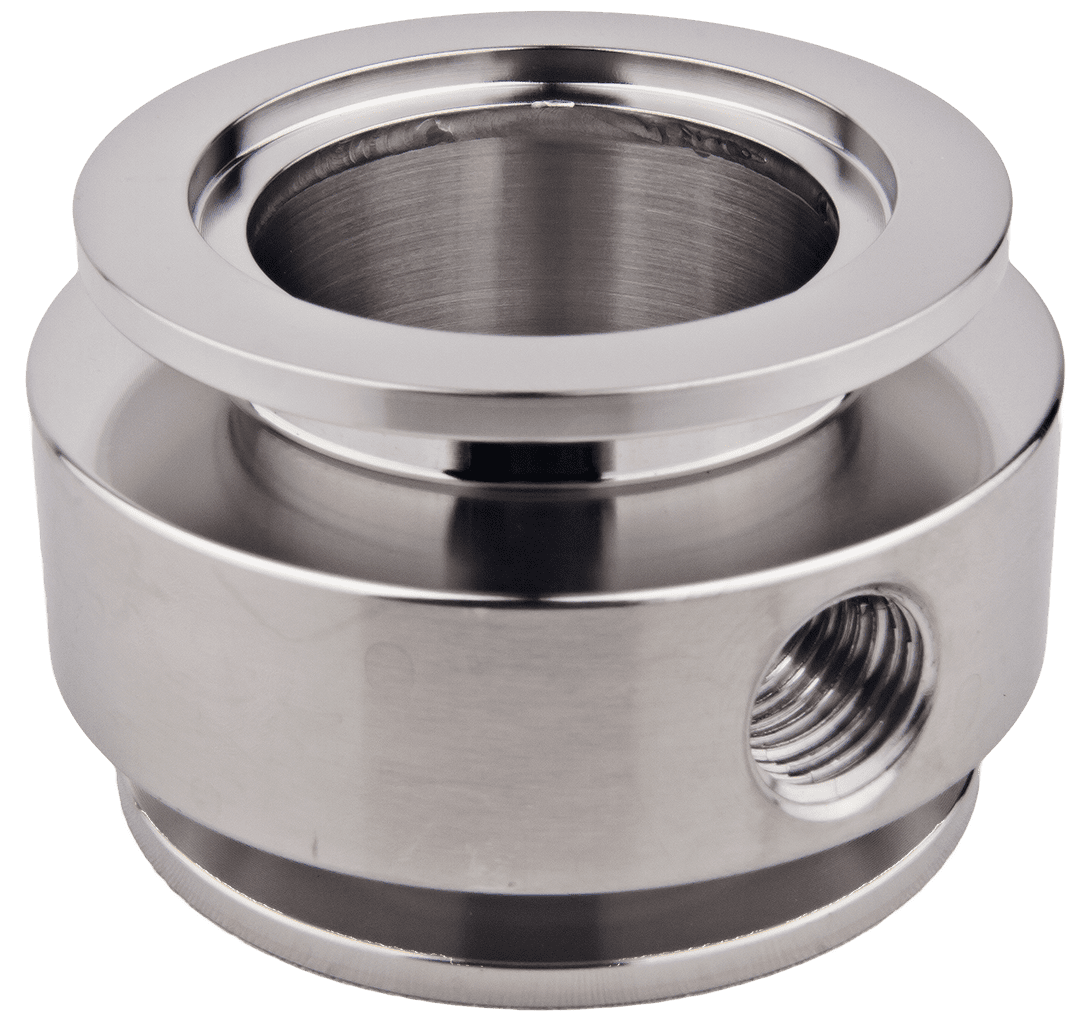

Click to enlargeNW Adaptive Tees

NW Adaptive Tee
• Side Tapped to Female NPT

• NW (KF QF) Flange
• 304 Stainless or Aluminum
• KF to NPT, Tee
NPT Female to ISO-QF Tee Adapter Tee

NW, KF, QF Series High Vacuum Flange

*NW16 (KF16) Flange OD: 1.18"

Tube OD: 0.75"

NW25 (KF25) Flange OD: 1.57"

Tube OD: 1.00"

NW40 (KF40) Flange OD: 2.18"

Tube OD: 1.50"

NW50 (KF50) Flange OD: 2.95"

Tube OD: 2.00"

*NW16 Centering Ring Counter Bore: 0.68"





NW16 Adaptive Tees
NW25 Adaptive Tees
NW16 Adaptive Tees

All Types

NW25 Adaptive Tees

All Types

NW40 Adaptive Tees
NW50 Adaptive Tees
NW40 Adaptive Tees

All Types

NW50 Adaptive Tees

All Types

Teflon Tape
Click to enlarge
Teflon Tape

91-S Silicone Vacuum Grease

For Use With Teflon Tape
