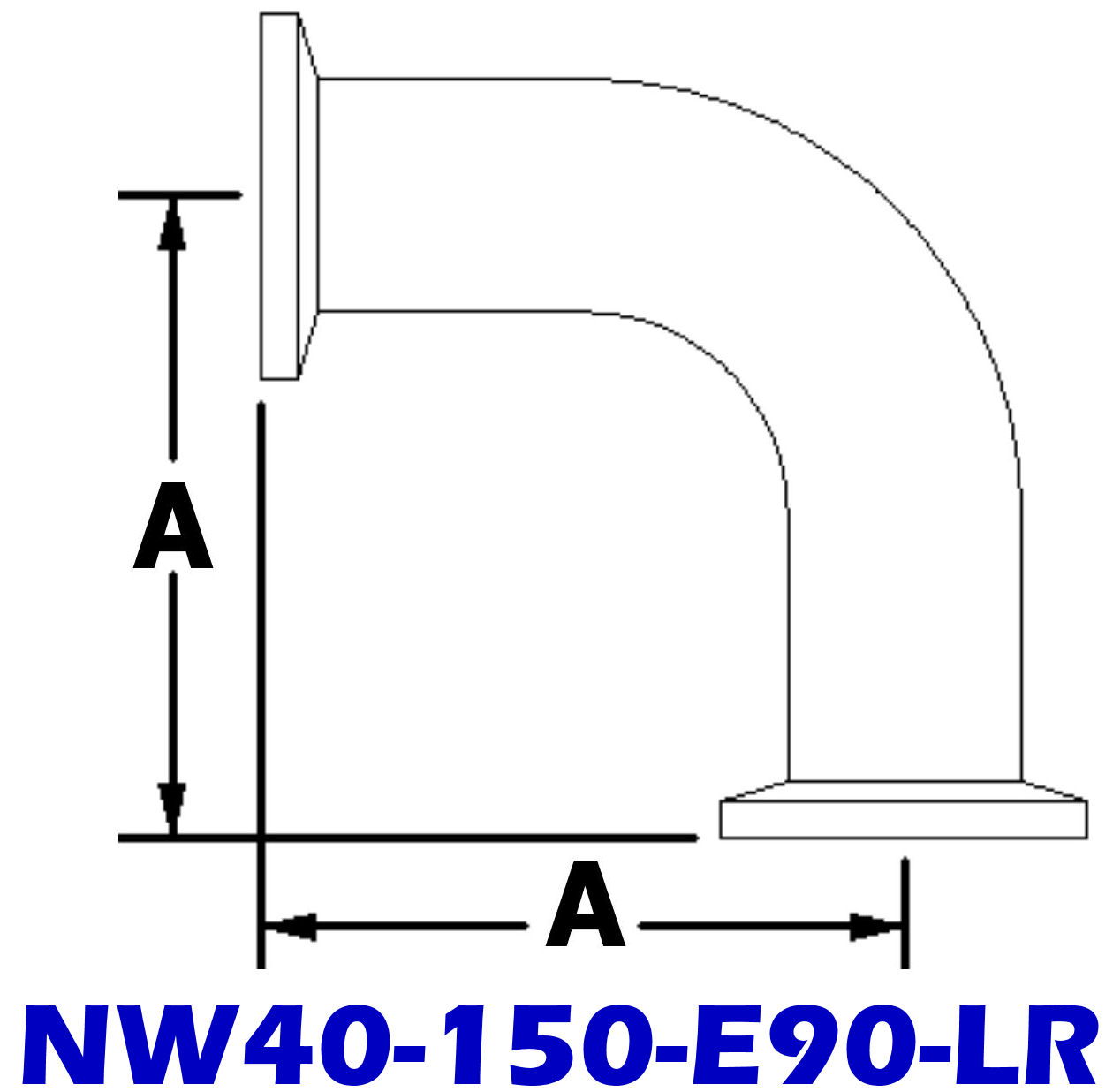

NW40-150-E90-LR <br> Long Radius Elbow (NW40 Series)

90° Elbow - NW40
Long Radius
A: 5.12"
304 SS

NW40-150-E90-LR
90 Degree Long Radius Elbow, NW40
• High Vacuum Elbow
• 304 Stainless
• OD Polish

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40-150-E90-LR Compare to P102334 4000464 QF40-150-E90LR-5.12 100314415 QF40-E90-LR QF40-150-E90-LR K150-2LL 723020 C10516406 NW40-150-E90-LR-VE NW40-E90-LR-VE NW40-E90LR-VE



All NW40 Hardware		90° Long Radius Elbows, NW Series



NW Elbows (All)

NW40 Flange OD: 2.18"
NW40 Tube OD: 1.50"

***NW40 Flange Accessories Available Below***
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps
