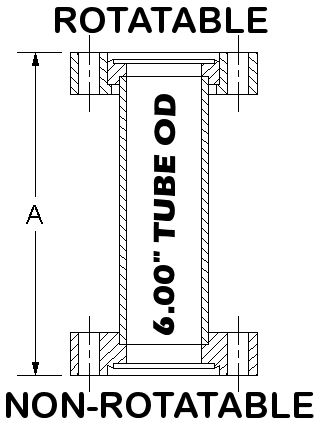

Click to enlarge8.00" Flange OD Conflat Flange Full Nipple A: 6.00" (Short OAL)

800-NS-VE
8.00" OD Conflat Full Nipple, Short
6.00" OAL, Short Length
DN160CF Non-Rotatable & Rotatable Flanges
Vacuum Essential
• 304 Stainless
• OD Polish

8.00" OD Conflat Flange (CF):
• UHV Ultra High Vacuum Flanges
• 6.00" Tube OD
• 20 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

8" OD CFF Conflat Flange (CF800) Equivalents:
DN160CF, DN150CF, NW150CF, CF150, CF160, 800CF
800-600-NS 800-600-NS-VE 800-N-S-VE


8.00" OD Conflat Flange
Full Nipple, 6.00" OAL
800-NS-VE
800-NS-VE$638.00

Click to enlarge
Click to enlarge
8.00" OD Conflat Series Hardware


Custom Adapters and Nipples



**This Vacuum Essential Includes**
• 8.00" OD Conflat FULL NIPPLE
• 2-Bolt Kits (800-BK Series)
• 10-Copper Gaskets (800-CG Series)
