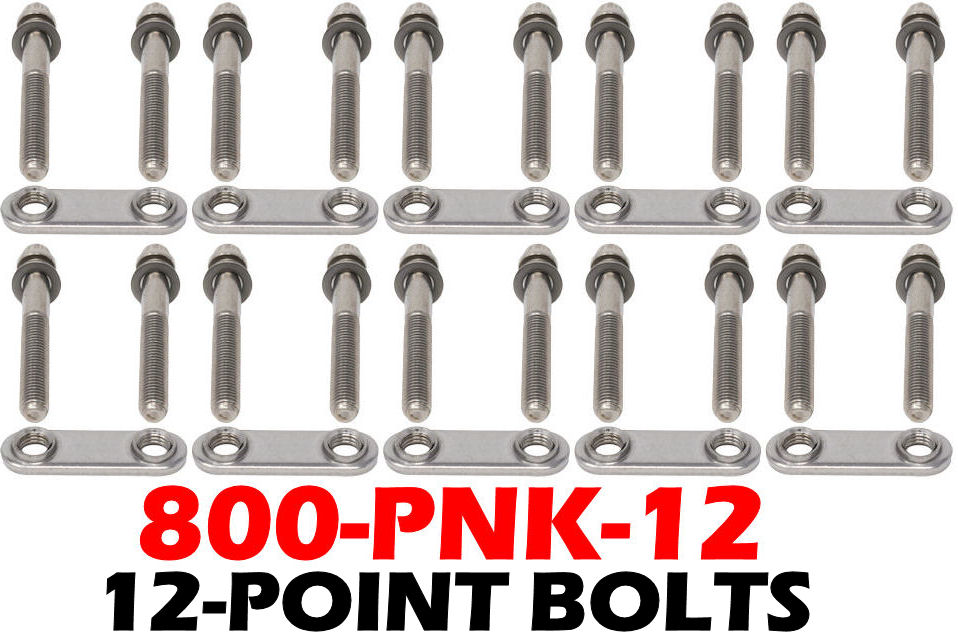

8.00" OD Conflat Flange (20) 12 Point Bolts, (10) Plate Nuts & Washer Kit

800-PNK-12
Fits: 8" OD CF Conflat Flanges With Thru Hole
10 Plate-Nuts, 20 Bolts & Washers Kit
• Weight: 2 lbs
• 12-PT Bolt, Washer and Plate Nut Kit
• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless 12 Point Bolts
• DN160CF (8.00") Clearance Hole Bolt Kit
• Ultra-High Vacuum (UHV) Hardware

800-PNK12 Series Bolt Kit Fits:
8.00" OD Non-Rotatable Thru Hole CF Flanges
8.00" OD Rotatable Thru Hole CF Flanges

Also Fits All CF Elbows, Tees and Crosses


Plate Nuts allow two adjacent bolts to be coupled to a single nut piece. A must for areas where accessibility is limited and reduced access does not allow enough clearance for tools.

Maximum Torque for Vacuum Tight Seals

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts




12-Point Bolt Kit
Plate-Nuts & Washers
Fits: 8.00" OD Conflat
Clearance (Thru) Hole
(800-PNK-12)
800-PNK-12$73.00

Click to enlarge
Click to enlarge
8.00" OD Conflat Series Hardware


12-Point Wrench


Click to enlarge
Click to enlarge
8.00" OD Conflat Series, Plate-Nuts


Anti-Seize Stick


Click to enlarge
Click to enlarge
8.00" OD Conflat
Rotatable
THRU Hole Series


8.00" OD Conflat
Non-Rotatable
THRU Hole Series
