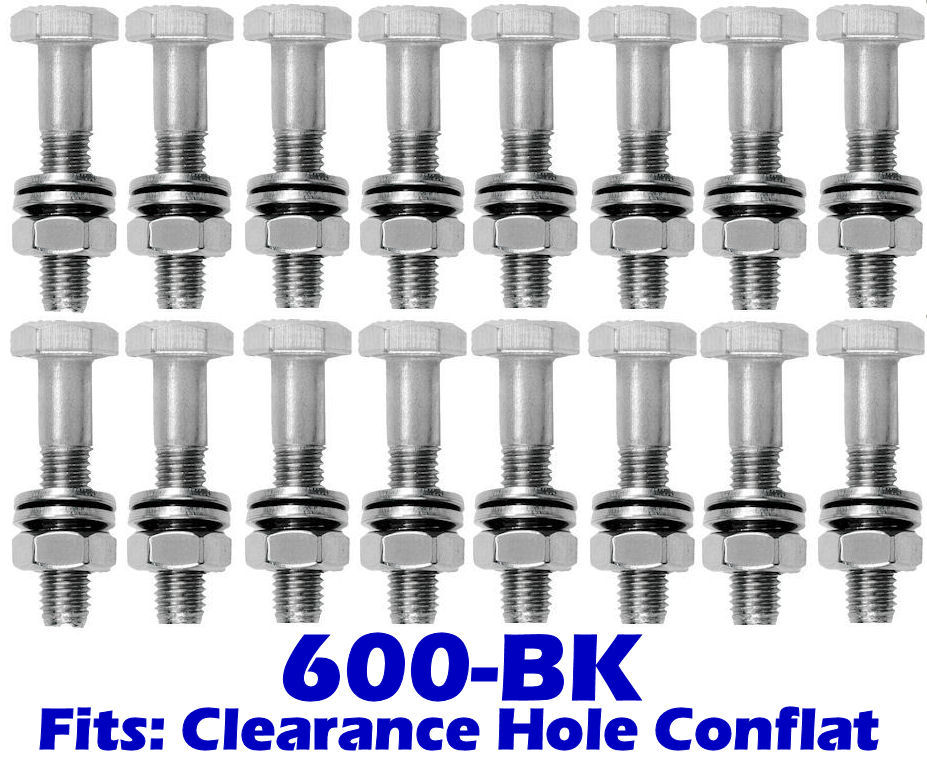

Click to enlarge6.00" OD Conflat Flange 16-Bolts, Nut & Washer Kit

600-BK
Fits: 6" OD CF Conflat Flanges With Thru Hole
16 Bolt, Nut and Washer Kit
• Weight: 1.50 lbs
• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless Bolts
• DN100CF (6.00") Clearance Hole Bolt Kit
• Ultra-High Vacuum (UHV) Hardware

600-BK Series Bolt Kit Fits:
6.00" OD Non-Rotatable Thru Hole CF Flanges
6.00" OD Rotatable Thru Hole CF Flanges

Also Fits All CF Elbows, Tees and Crosses

Maximum Torque for Vacuum Tight Seals

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts




Bolt, Nut & Washer Kit
Fits: 6.00" OD Conflat
Clearance (Thru) Hole
(600-BK)
600-BK$24.00

Click to enlarge
Click to enlarge
6.00" OD Conflat Series Hardware


6.00" OD Conflat Series, Plate-Nuts


Click to enlarge
Click to enlarge
6.00" OD Conflat Series, Copper Gaskets


6.00" OD Conflat Series, Viton® Gaskets


Click to enlarge
Click to enlarge
6.00" OD Conflat
Non-Rotatable
THRU Hole Series


6.00" OD Conflat
Rotatable
THRU Hole Series


Click to enlarge
Anti-Seize Stick
