6.00" OD Conflat to 2.12" OD Conflat Zero Length Reducer

600x212-100-0-T1
6.00" OD Conflat to 2.12" OD Conflat
212x600 UHV Flange To Flange Adapter
Zero Length Reducer
• DN100CF x DN25CF
• Weight: 7 lbs

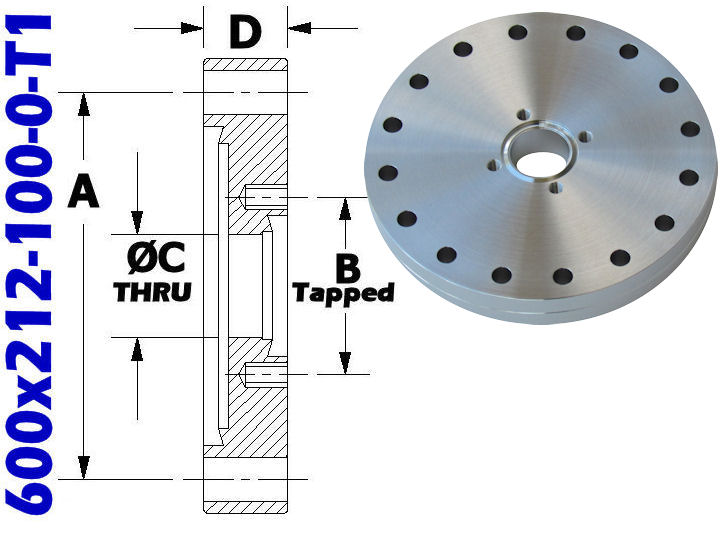

• A: 6.00" OD Conflat (16-Thru Holes)
• B: 2.12" OD Conflat (4-Tapped Holes)
• C: 1.00"
• D: 0.78"

2.12" OD Conflat Flange (DN25CF):
• 4 Tapped Holes
• 1/4-28 Thread
• Uses 212-BT Tapped Bolt Kit

2.125" OD Conflat Flange (CFF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF


6.00" OD Conflat Flange (CF):
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF
600x212-100-0-T1 Compare to: 600x212-100-T1 RF600X212 600-212-100Z 600x218 150015 P104814 FR060002124 Del Seal


6.00" OD CF to 2.12" OD CF
Zero Length Reducer
(600x212-100-0-T1)
600x212-100-0-T1Price: $275.49Sale: $129.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


6.00" OD Conflat Series Hardware



2.12" OD Conflat:
• 4-TAPPED Holes

6.00" OD Conflat:
• 16-Clearance Holes

***2.12" OD Conflat Flange Accessories Below***
2.12" OD Conflat - Copper Gaskets
2.12" OD Conflat - Viton Gaskets
2.12" OD Conflat - Tapped Hole Bolt Kit

***6.00" OD Conflat Flange Accessories Below***
6.00" OD Conflat - Copper Gaskets
6.00" OD Conflat - Viton Gaskets
6.00" OD Conflat - Clearance Hole Bolt Kits
