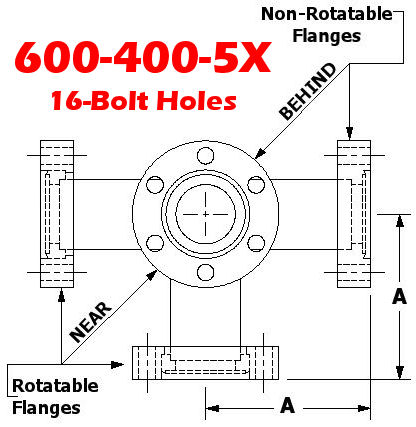

Click to enlarge5-Way Cross 6.00" OD Conflat Flange A: 4.32"

600-400-5X
5 WAY CROSS, 6" OD CF Conflat Flange
• OD Polish
• 304 Stainless
• 21 lbs.

6.00" OD Conflat Flange (CF):
• 4" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal

High Vacuum & Ultra High Vacuum (UHV)
5-Way Cross
600-400-5X Compare to: C5-0600S 400-5 5C-400 5000558 CF600-400-5X-4.32 P104690 600-400-5X-VE 600-5X-VE


6.00" OD Conflat Flange
Five-Way Cross
(600-400-5X)
600-400-5XPrice: $2,054.00Sale: $1,088.00

Click to enlarge
Click to enlarge
6.00" OD Conflat Series Hardware


5-Way Crosses, Conflat Series


Click to enlarge
Click to enlarge
All Conflat Crosses


5-Way Cross Weld Bodies



**6.00" OD Conflat Flange Accessories Below**
6.00" OD Conflat Flange - Bolt Kits
6.00" OD Conflat Flange - Copper Gaskets
6.00" OD Conflat Flange - Viton Gaskets
6.00" OD Conflat Flange – Plastic Caps
