6.00" OD Conflat To NW50 <br> Reducing Cross <br> (600xNW50-RWX)

Reducing Cross
6.00" CF To NW50

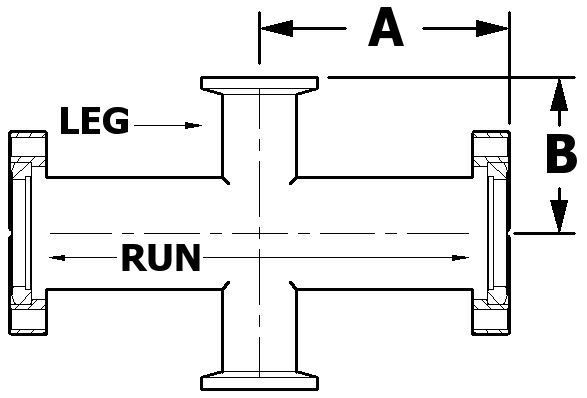

A: 4.05"
B: 4.17"

600xNW50-RWX
6.00" OD Conflat to NW50 Reducer Cross

Flange 1&2: (Run)
6" OD CF Conflat Flange
• 4.00" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Rotatable Conflat Flanges

6.00" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF

Flange 3&4 (Leg):
NW50 (KF50) Vacuum Flange
• NW50 Flange OD: Ø2.95"
• NW50 Tube OD: 2.00"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
4-Way Reducing Adapter Cross
NW50x600-X NW50x600-RWX 600xNW50-X



6.00" OD Conflat Series Hardware		All NW50 Hardware



All Conflat Crosses		All NW Crosses



4-Way Reducer Cross Weld Bodies (All)		Non-Reducing Series
